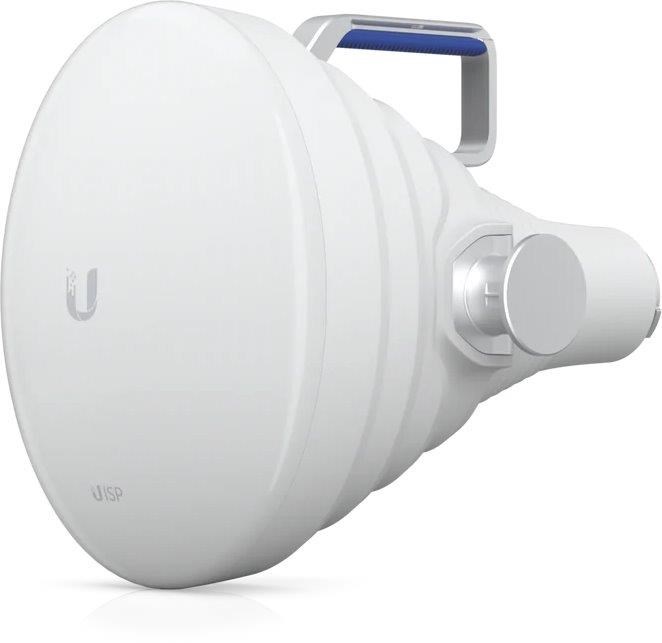

UBNT UISP-Horn, Asymetrická sektorová anténa, 5GHz, 19.5dBi, 30°/25°

Popis produktu Horn is an efficient PtMP antenna that provides high isolation within congested environments by utilizing its wide operating frequency range. With the included WaveGuide adapter, this antenna can be easily attached to an airFiber 5XHD Radio (AF 5XHD), LTU Rocket , or airMAX Rocket Prism AC 5 GHz Radio (RP 5AC) to amplify their signal. The UISP Horn also has a latch on each side for secure, snap-in radio connection. Operation frequency may vary based on regional radio frequencies and regulations. Features: High-isolation 30° horn antenna that covers a wide operating frequency range (5.15 - 6.875 GHz) Low backlobes for device co-location 15+ km PtMP link range Die-cast, UV-stabilized polycarbonate enclosure for enhanced durability and weatherproofing Pole-mountable antenna with a metal carrying handle Two side latches for secure, snap-in radio connection Notes: Compatible with the AF 5XHD, RP 5AC, and LTU Rocket. Operation frequency may vary based on regional radio frequencies and regulations. Technické parametry Bezdrátové vlastnosti Polarizace:VH VSWR:< 2,0 Předozadní poměr [dB]:40 Izolace mezi konektory [dB]:20 Bezdrátové frekvence:5 GHz Vyzař. úhel v elevační rovině (-6dB) [°]:25 Vyzař. úhel v azimutové rovině (-6dB) [°]:30 Druh antény:Sektorová Fyzické charakteristiky Určeno na stožár o průměru [mm]:25 až 70 Odolnost proti větru [km/h]:200 Stupeň krytí:IPX6 Použití:Venkovní Materiál:Hliník, UV stabilní polakarbonát Hmotnost [kg]:3,9 Šířka [mm]:224 Výška [mm]:282 Hloubka [mm]:380
