| WIRELESS |
| Standards and Protocols | Wi-Fi 7 |
| WiFi Speeds | 5 GHz: 2882 Mbps
2.4 GHz: 688 Mbps |
| WiFi Capacity | High Dual-Band
Allocate devices to different bands for optimal performance
Airtime Fairness
Improves network efficiency by limiting excessive occupation
4 Streams
Connect your devices to more bandwidth |
| Working Modes | Router Mode
USB Tethering Mode
3G/4G/5G USB Modem Mode
Hotspot Mode (WISP Mode)
Access Point Mode
Range Extender Mode
Client Mode |
| SECURITY |
| Network Security | SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway |
| Guest Network | 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network |
| VPN Server | • OpenVPN Server
• PPTP VPN Server
• L2TP VPN Server
• Wireguard VPN Server |
| VPN Client | Open VPN Client
• PPTP VPN Client
• L2TP VPN Client
• Wireguard VPN Client |
| WiFi Encryption | WPA2-PSK
WPA3-Personal
WPA/WPA2-Enterprise |
| HARDWARE |
| Ethernet Ports | 2.5× Gigabit WAN Port
1× Gigabit LAN Port |
| USB Support | 1× USB 3.0 Port |
| Buttons | Customizable Button: Supports Power On/Off, LED Control, and VPN Activation |
| Power | 5V/3A,External DC power adapter |
| SOFTWARE FEATURES |
| Quality of Service | QoS by Device |
| WAN Type | Dynamic IP
Static IP
PPPoE
PPTP
L2TP |
| Management Features | Tether App
Webpage |
| DHCP | DHCP Server
DHCP Client List
Address Reservation |
| Protocols | IPv4
IPv6 |
| OTHER |
| Network Services Enabled by Default | Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP
DNS
DNS
• Port: 53 Protocol: TCP & UDP
DHCP Server
IP address assignment (DHCP)
• Port: 67 Protocol: UDP
App management
Manage and configure device through app
• Port: 20001 Protocol: TCP
• Port: 30001 Protocol: TCP
• Port: 20002 Protocol: UDP |
| Certifications | FCC, CE |
| Environment | Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~60? (-40? ~140?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
| TEST DATA |
| WiFi Transmission Power | CE:
<20dBm(2.4 GHz)
<23dBm(5.15 GHz~5.25 GHz)
FCC:
<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) |
| WiFi Reception Sensitivity | 2.4GHz
11b 1M:-96dBm
11n HT20M MCS7:-73dBm
11n HT40M MCS7:-70dBm
5GHz
11a 6M:-93dBm
11ax HE20M MCS11:-63dBm
11ax HE40M MCS11:-60dBm
11ax HE80M MCS11:-59dBm |
| PHYSICAL |

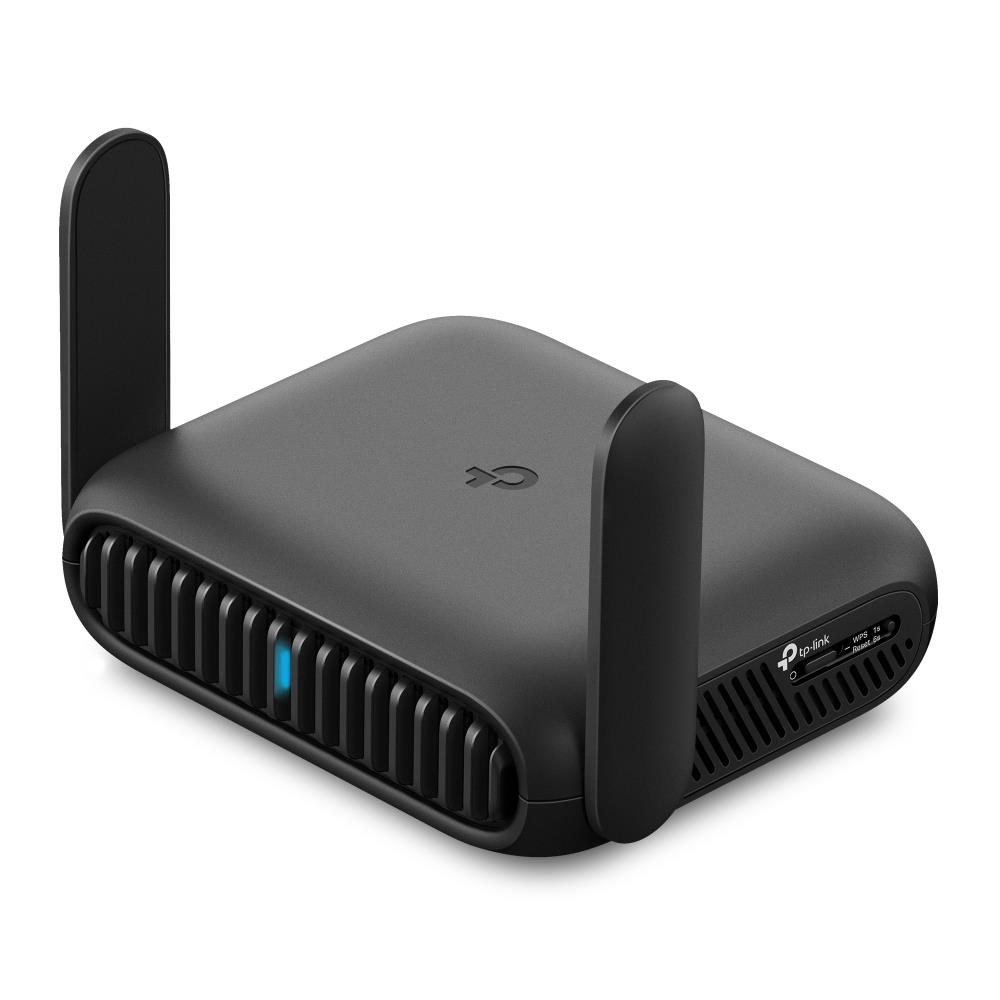

| Package Content | TL-WR3602BE
Power Adapter
RJ45 Ethernet Cable
USB Cable
Quick Installation Guide
Wi-Fi Info card |
