| HARDWARE FEATURES | |
| Plug Type | EU, UK, US |
| Standards and Protocols | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Interface | 1 * 10/100Mbps Ethernet Port (RJ45) |
| Button | RE (Range Extender) Button, Reset Button |
| Input Power | 100-240V~50/60Hz |
| Power Consumption | About 3W |
| Dimensions (WxDxH) | 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm) |
| Antenna | 2 * external |
| WIRELESS FEATURES | |
| Frequency | 2.4~2.4835GHz |
| Signal Rate | 11n: Up to 300Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic) |
| Reception Sensitivity | 270M: -69dBm@10% PER
130M: -69dBm@10% PER
108M: -69dBm@10% PER
54M: -69dBm@10% PER
11M: -86Bm@8% PER
6M: -89dBm@10% PER
1M: -91dBm@8% PER |
| Transmit Power | < 20 dBm (EIRP) |
| Wireless Modes | Range Extender/Access Point |
| Wireless Functions | WMM (Wi-Fi Multimedia)
Wireless MAC Address Filtering
Wireless Statistic
Domain Login Function |
| Wireless Security | 64/128/152-bit WEP
WPA-PSK / WPA2-PSK |
| OTHERS | |
| Certification | CE, RoHS |

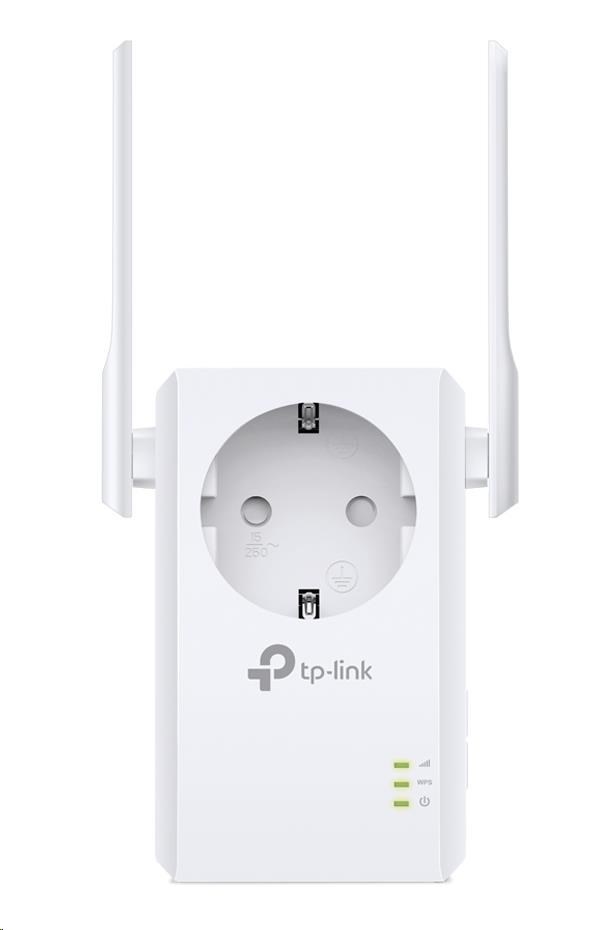

| Package Contents | 300Mbps Wi-Fi Range Extender with AC Passthrough TL-WA860RE
RJ-45 Ethernet Cable
Resource CD
Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac OS, NetWare, UNIX or Linux. |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
