| CAMERA |
| Image Sensor | 1/2.8" Progressive Scan CMOS Sensor |
| Lens | Focal Length: 4.0 mm
Aperture: F1.6
Field of View: 100.6° (Diagonal), 84.4°(Horizontal), 44.3°(Vertical) |
| Motion Range | Pan Mechanical Range: 340° (360° Pan Coverage)
Tilt Mechanical Range: 90° (130° Tilt Coverage) |
| Night Vision | 2× 850 nm IR LEDs (33 ft / 10 m)
Full-Color Night Vision |
| Lighting | 2× Built-in Spotlights |
| Interface & Button | 1× Power Button
1× RESET Button
1× MicroSD Card Slot (Up to 512GB) |
| SOLAR PANEL |
| Connection Capacity | A solar panel can only connect to one camera. |
| Output Port | Type-C |
| VIDEO & AUDIO |
| Maximum Resolution | 2K 3MP(2304×1296 px) |
| Frame Rate | 15 fps |
| Digital Zoom | 45879 |
| Live View | YES |
| Image Enhancement | 3DNR
WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 97.2 dBA (Level measured at 10 cm distance)
68.2 dBA (Level measured at 300 cm distance) |
| STORAGE |
| Local Storage | MicroSD Card Slot on Camera (Up to 512 GB, microSD card not included) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
| DETECTION and NOTIFICATIONS |
| Sensor | Single Motion Sensor |
| AI Detection | Motion Detection
Person Detection |
| Activity Zones | Yes |
| Output Notification | System Notification
System Notification with Snapshot (Tapo Care Services) |
| NETWORK |
| Network Connectivity | Connect via Wi-Fi |
| Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
| SECURITY |
| Security | 128-bit AES Encryption with SSL/TLS
WPA/WPA2-PSK |
| POWER |
| Power Source | Built-in Rechargeable Lithium-ion Battery
Solar Panel: Tapo A201(included) |
| Input Voltage | Adapter Input: 100-240 V, 50/60 Hz
(Not include) |
| Output Voltage | Adapter Output: 5.0 V, 1.0 A (Not include)
Solar Panel Max Charging Voltage: 5.2 V
Solar Panel Max Charging Power: 2.5 W |
| GENERAL |
| Smart Integration | Google Assistant, Amazon Alexa |
| Weather Resistance | IP65 for both camera and solar panel |
| System Requirements | Tapo App: iOS 12.0 or higher, Andriod 7.0 or higher |
| Mounting Options | Ceiling-Mounted
Wall-Mounted
Pole-Mounted (Pole-Mounting loops required but not included) |
| Operating Temperature | -20°C to 45°C (-4°F to 113°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 0%~90% RH, Non-condensing |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
| Dimensions ( W x D x H ) | Camera Dimensions: 130.88 × 116.09 × 84.06 mm (5.15 × 4.57 × 3.31 in.)
Solar Panel Dimensions: 173.4 x 120.4 x 15.7 mm (6.83 x 4.74 x 0.618 in.) |

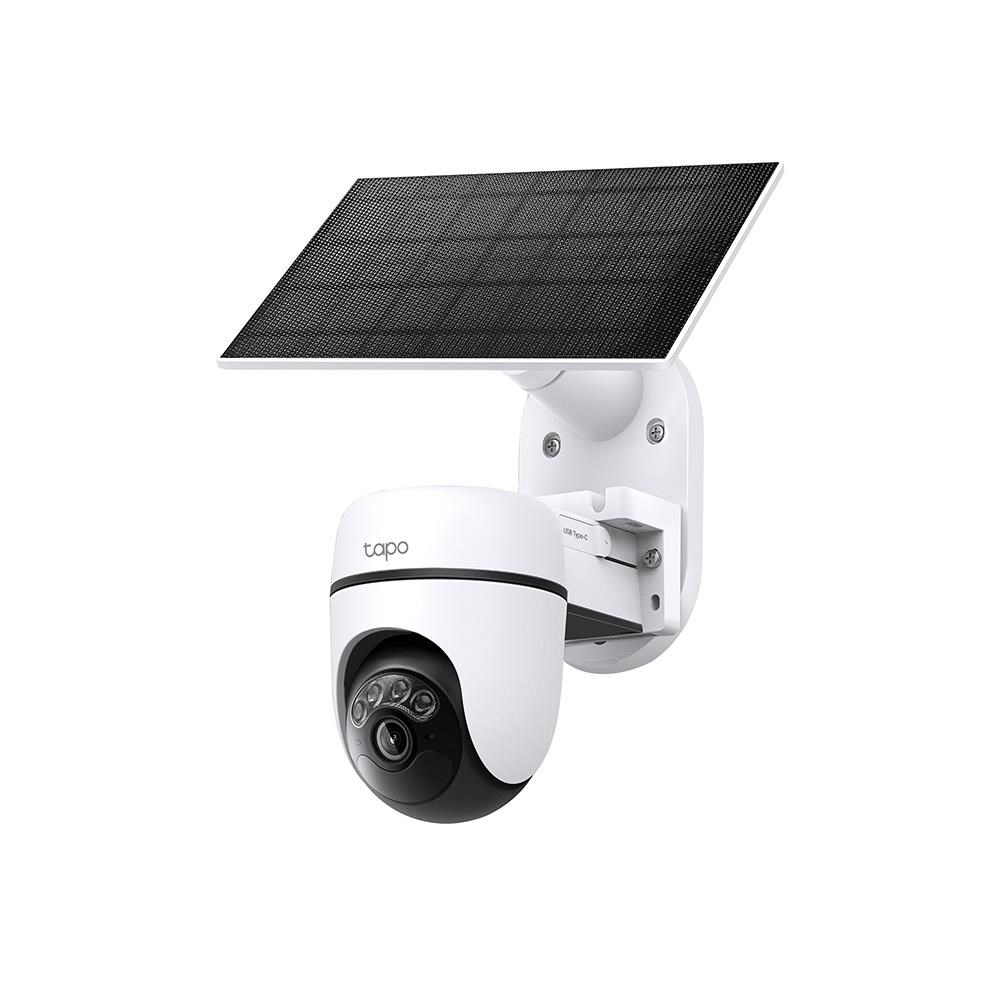

| Package Content | Tapo C610 Camera × 1
Tapo A201 Solar Panel × 1
Tapo A201 Solar Panel Bracket × 1
Base Cover × 1
USB Adapter Cable × 1
Extension Wire × 1
Cable Zip Tie × 1
Mounting Screws and Anchors
Mounting Template Stickers
Quick Start Guide |
| Certifications | CB, CE, FCC, DOE, CEC, RCM, KC, JFR,VCCI,NCC, BSMI, NTRA, IP65 |
