| HARDWARE FEATURES | |
| Plug Type | EU, UK, US, AU, KR, JP |
| Standards and Protocols | IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Interface | 1 x 10/100/1000M Ethernet Port (RJ45) |
| Button | WPS Button, Reset Button, LED Button, Power Button |
| Input Power | 100-240V~50/60Hz |
| Power Consumption | 10W(max power consumption) |
| Dimensions (WxDxH) | 6.4 x 3.0 x 2.6 in. (163 x 76.4 x 66.5mm) |
| Antenna | 3 x external |
| WIRELESS FEATURES | |
| Frequency | 2.4GHz & 5GHz(11ac) |
| Signal Rate | 5GHz:Up to 1300Mbps
2.4GHz:Up to 600Mpbs |
| Reception Sensitivity | 5GHz:
11a 6Mbps:-93dBm@10% PER
11a 54Mbps: -76dBm@10% PER
11ac HT20 mcs8: -68dBm@10% PER
11ac HT40 mcs9: -64dBm@10% PER
11ac HT80 mcs9: -61dBm@10% PER
2.4GHz:
11g 54M: -77dBm@10% PER
11n HT20 mcs7: -73dBm@10% PER
11n HT40 mcs7: -70dBm@10% PER |
| Wireless Modes | Range Extender/Access Point |
| Wireless Functions | Wireless Statistic
Concurrent Mode Boost Both 2.4G/5G WiFi Band
Access Control
LED Control
Domain Login Function
Wi-Fi Coverage |
| Wireless Security | 64/128-bit WEP
WPA-PSK / WPA2-PSK |
| Transmission Power | <20dBm(2.4GHz)
<23dBm(5GHz) |
| OTHERS | |
| Certification | CE, FCC, RoHS |

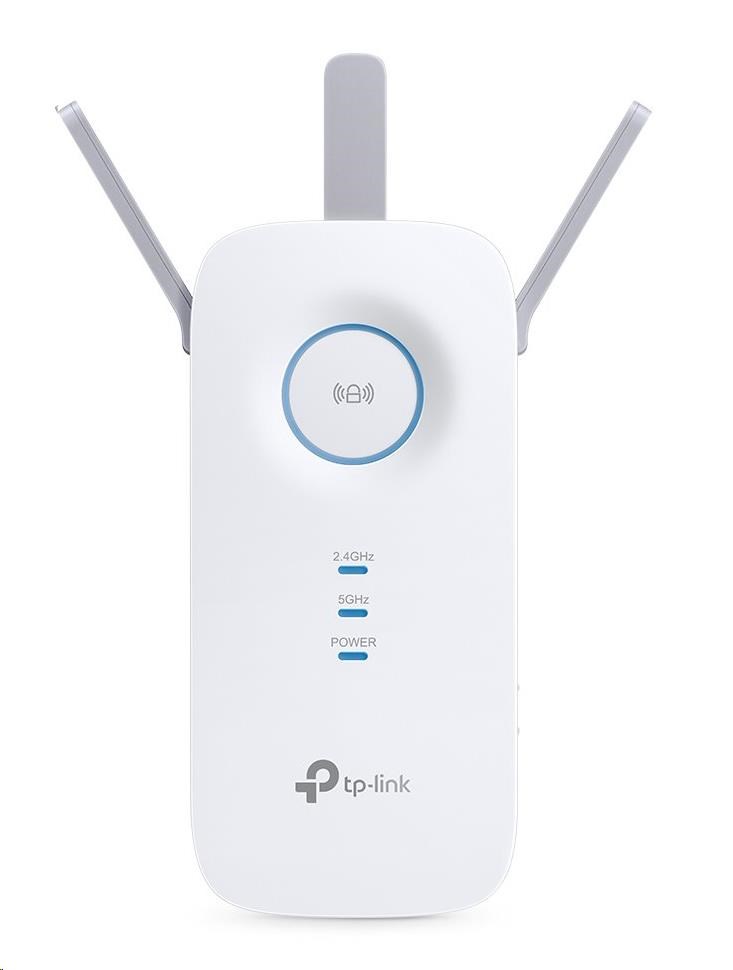

| Package Contents | AC1900 Wi-Fi Range Extender RE550
Quick Installation Guide |
| Box Dimensions (W X D X H) | 7.9 x 4.9 x 3.4in. (202x 125 x 86mm) |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac OS, NetWare, UNIX or Linux. |
| Environment | Operating Temperature: 0°C~30°C (32°F~86°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
