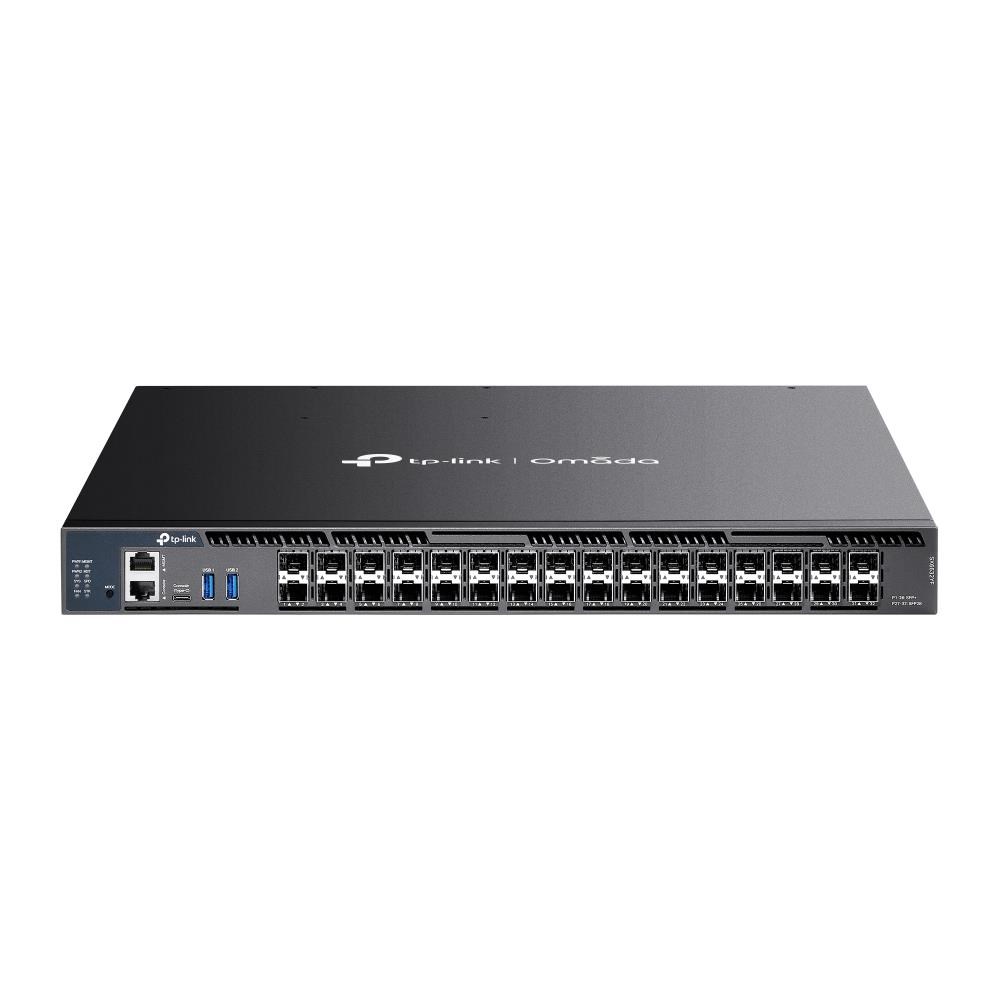

TP-Link OMADA switch SX6632YF (26xSFP+,6xSFP28,2xUSB3.0,2xconsole)

TP-Link OMADA switch SX6632YF (26xSFP+,6xSFP28,2xUSB3.0,2xconsole)
TP-Link OMADA switch SX6632YF (26xSFP+,6xSFP28,2xUSB3.0,2xconsole)
TP-Link OMADA switch SX6632YF (26xSFP+,6xSFP28,2xUSB3.0,2xconsole)
TP-Link OMADA switch SX6632YF (26xSFP+,6xSFP28,2xUSB3.0,2xconsole)
TP-Link OMADA switch SX6632YF (26xSFP+,6xSFP28,2xUSB3.0,2xconsole)

Provedení:Rack mounted 19"; Funkce:QoS (Quality of service), VLAN (virtual local area network), DHCP snooping, Stohovatelnost, L2, L2+, L3, Web management/Smart switch; Technologie:10 Gigabit optika; Počet portů LAN:26; Přenosová rychlost LAN (Mb/s):10000; Počet SFP+ portů:26; Počet portů SFP28:5; Ventilátor; Maximální počet portů:32

Vaše cena: 70 313,30 Kč

Košík:

ks
Koupit
Dostupnost: 5,00

Informace o ceně

Vaše cena bez SNC:
70 313,30 Kč
  • SNC:
    1,70 Kč
  • Vaše cena celkem:
    70 313,30 Kč
Kód:
324178
P/N:
SX6632YF
Záruka:
60 Měsíc(ů)
Výrobce:
TP-link
Zástupce v EU:
EAN:
4895252501315
Tisk produktové nabídky Porovnat produkt

Podrobnosti

TP-Link OMADA switch SX6632YF

26portový 10G stohovatelný L3 řízený agregační switch se 6x 25G sloty

  • 26× 10G SFP+ sloty a 6× 25G SFP28 sloty
  • Přepínací kapacita 820 Gbps
  • Fyzické stohování pro vestavěnou redundanci a výkon
  • Funkce L3: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
  • Bezpečnostní strategie: ACL, Port Security, DoS Defend, 802.1X
  • Vysoce dostupné se dvěma napájecími zdroji*, VRRP a ERPS
  • Centralizovaná správa cloudu prostřednictvím řadiče Omada SDN
  • Samostatná správa přes web, CLI, SNMP a RMON

Více informací o Omada Cloud SDN>?

Stránky produktu: https://www.tp-link.com/cz/business-networking/managed-switch/sx6632yf/#specifications

Technické specifikace


*Ships with one PSM550-AC module by default, and another field-replaceable redundant power supply requires a separate purchase.
ISP Features:
• 802.3ah Ethernet Link OAM
• L2PT (Layer 2 Protocol Tunneling)
• Device Link Detect Protocol (DLDP)
• DDM
• sFlow
• Storage Temperature: -40 °C to 70 ? (-40 ? to 158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
HARDWARE FEATURES
Interface • 6× 10/25G SFP28 Slots
• 26× 10G SFP+ Slots
• 2× USB 3.0 Ports
• 1× RJ45 Console Port
• 1× USB Type C Console Port
• 1× RJ45 Management Port
Fan Quantity Four field-replaceable and hot-swappable fans
Physical Security Lock ?
Power Supply Two field-replaceable and hot-swappable redundant power supplies (100–240 VAC, 50/60 Hz)
Power Consumption 86.7 W (110 V/60 Hz)
Dimensions ( W x D x H ) 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
Mounting Rack Mountable
Max Heat Dissipation 295.85 BTU/hr (110 V/60 Hz)
PERFORMANCE
Switching Capacity 820 Gbps
Stacking • Stacking Number: 8
• Stacking Port: 25G SFP28
• Stack Bandwidth: Up to 300 Gbps (6 stack ports)
Packet Forwarding Rate 610.1 Mpps
MAC Address Table 128 K
Packet Buffer Memory 8 MB
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service • Class of Service
- 8 Queues of Priority
- Port Priority
- IEEE 802.1p Priority
- DSCP Priority
- Queue Min-Bandwidth
- Schedule Mode (SP, WRR, SP+WRR)
• Bandwidth Control
- Rate Limit
- Strom Control
• Voice VLAN
• User-Defined OUI
L3 Features • Routing IP Interfaces
- Static Routing
- Host Route Table
- RIP v1/v2
- RIPng
- OSPFv2/v3
- VRRP
- ECMP
- ARP Proxy
• DHCP
- DHCP Server
- DHCP Relay
- DHCPv6 Relay
- DHCP Snooping
- DHCPv6 Snooping
• Multicast
- Multicast Table
- IGMP v1/v2/v3
- Static Multicast Routing
L2 and L2+ Features • Switching
- Port Mirroring(SPAN)
- RSPAN
- Loopback Detection
- Traffic Monitor
• Trunking
- Static LAG
- LACP 802.3ad
• Mac Address
- MAC Address Table
- Static MAC
- Dynamic MAC Address
- Filtering MAC Address
- MAC Flapping
• STP
- STP 802.1d
- RSTP 802.1w
- MSTP 802.1s
- Loop/Root/TC Protect
- BPDU Protect/Filtering
• ERPS
• Multicast
- IGMP Snooping
- MLD Snooping
- L2 Multicast Table
- Fast Leave
- Multicast VLAN Registration (MVR)
- Static Multicast IP
- Multicast Filtering
Advanced Features • Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Intelligent Network Monitoring†
• Abnormal Event Warnings†
• Unified Configuration†
• Reboot Schedule†
VLAN • IEEE 802.1q Tag VLAN
• MAC VLAN
• Protocol VLAN
• VLAN VPN(QinQ)
• Private VLAN
• GARP/GVRP
• Voice VLAN
• Multicast VLAN
• Management VLAN
Security • Access Security
- Port/MAC/IP-based Access Control
- SSL
- SSH
• Port Security
• Port Isolation
• CPU-Deffend
• Time Range
- Time Range Defination
- Periodic Time Range
- Absolute Time Range
- Time Holiday
• ACL
- Entries
- L2/L3/L4 ACL
- ACL Action
- ACL over VLAN
- ACL over Port
• IP-MAC Binding
- IP+MAC+PORT+VID Binding
- Manual Binding
- ARP Scanning
- DHCP Filter
- DHCPv6 Filter
- DHCP Option 82
• ARP Inspection (Dynamic ARP Inspection)
• IP Source Guard
• IPv6 Source Guard
• ND Neighbor Discovery/ ND Snooping/ ND Filtering
• DoS Defend
• Authentication, Authorization & Accounting (AAA)
- 802.1X Port Authentication
- RADIUS Authentication
- RADIUS Accounting
- TACACS+ Authentication
MANAGEMENT
Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features • Web-based GUI
• Command Line Interface (CLI) through console port, telnet
• SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP Auto Install
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• Password Recovery
• SNTP
• System Log
OTHERS
Package Contents • SX6632YF Switch
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
Environment • Operating Temperature:
-5 °C to 50 °C (23 °F to 122 °F) @ 300 meters
-5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters
-5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters

Technické parametry

Funkce L2
Ventilátor Ano
Počet portů SFP28 5
Počet portů LAN 26
Počet SFP+ portů 26
Přenosová rychlost LAN (Mb/s) 10000
Maximální počet portů 32
Provedení Rack mounted 19"
Technologie 10 Gigabit optika
Management Web
