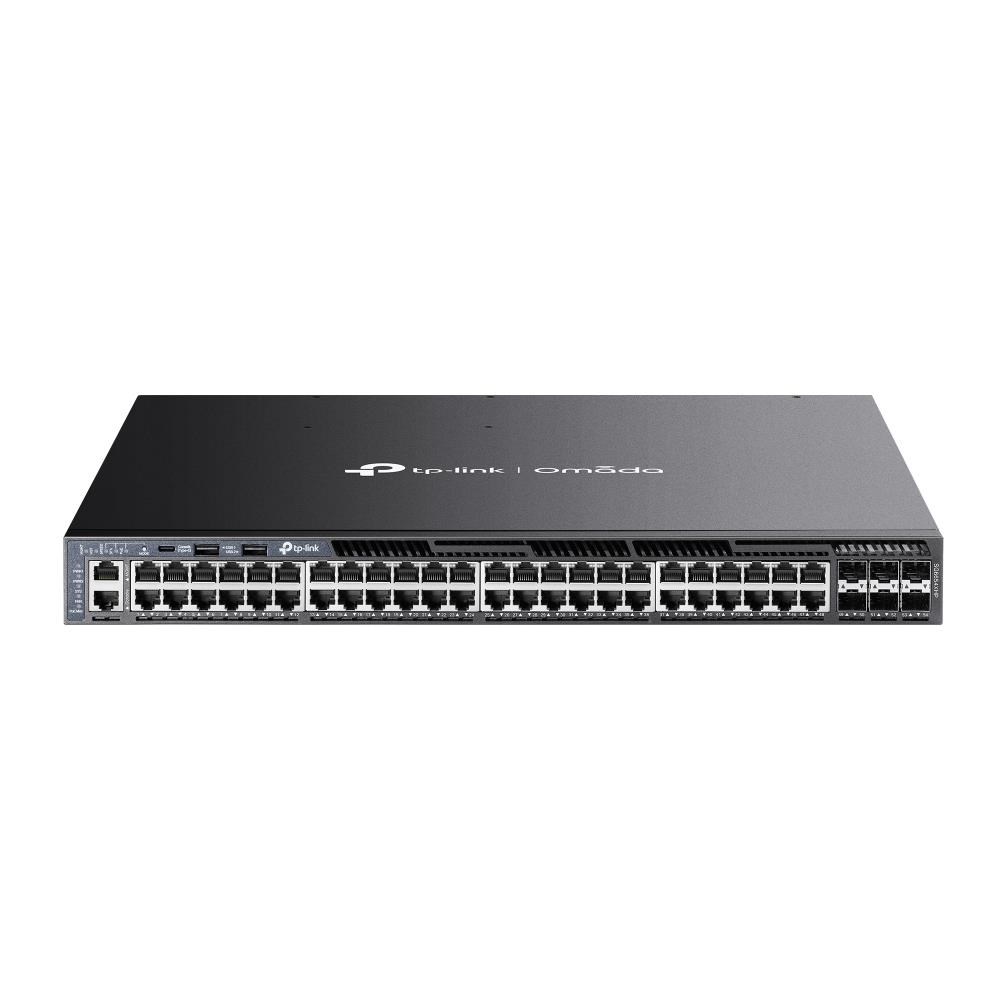

TP-Link OMADA switch SG6654XHP (48xGbE,6xSFP+,48xPoE+,1440W,2xUSB2.0,2xconsole,RP)

TP-Link OMADA switch SG6654XHP (48xGbE,6xSFP+,48xPoE+,1440W,2xUSB2.0,2xconsole,RP)
TP-Link OMADA switch SG6654XHP (48xGbE,6xSFP+,48xPoE+,1440W,2xUSB2.0,2xconsole,RP)
TP-Link OMADA switch SG6654XHP (48xGbE,6xSFP+,48xPoE+,1440W,2xUSB2.0,2xconsole,RP)
TP-Link OMADA switch SG6654XHP (48xGbE,6xSFP+,48xPoE+,1440W,2xUSB2.0,2xconsole,RP)
TP-Link OMADA switch SG6654XHP (48xGbE,6xSFP+,48xPoE+,1440W,2xUSB2.0,2xconsole,RP)

Provedení:Rack mounted 19"; Funkce:QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ethernet), DHCP snooping, Stohovatelnost, L2, L2+, L3, Web management/Smart switch; Technologie:Gigabit ethernet + 10 Gigabit optika; Počet portů LAN:48; Přenosová rychlost LAN (Mb/s):1000; Podporované standardy PoE:802.3af, 802.3at

Vaše cena: 66 923,30 Kč

Košík:

ks
Koupit
Dostupnost: 4,00

Informace o ceně

Vaše cena bez SNC:
66 923,30 Kč
  • SNC:
    1,70 Kč
  • Vaše cena celkem:
    66 923,30 Kč
Kód:
324179
P/N:
SG6654XHP
Záruka:
60 Měsíc(ů)
Výrobce:
TP-link
Zástupce v EU:
EAN:
4895252501414
Tisk produktové nabídky Porovnat produkt

Podrobnosti

TP-Link OMADA switch SG6654XHP

Omada 48portový gigabitový stohovatelný L3 řízený switch PoE+ se 6x 10G sloty

  • 48× Gigabit RJ45 PoE+ porty
  • 6× 10 Gbps SFP+ sloty
  • Celkový budget PoE až 1440 W*
  • Fyzické stohování pro vestavěnou redundanci a výkon
  • Funkce L3: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
  • Bezpečnostní strategie: ACL, Port Security, DoS Defend, 802.1X
  • Vysoce dostupné se dvěma napájecími zdroji*, VRRP a ERPS
  • Centralizovaná správa cloudu prostřednictvím řadiče Omada SDN
  • Samostatná správa přes web, CLI, SNMP a RMON

Více informací o TP-Link PoE technologii >

Více informací o Omada SDN >

Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-switch-l3-l2-managed/sg6654xhp

Technické specifikace

HARDWARE FEATURES
Interface • 48× 10/100/1000 Mbps PoE+ RJ45 Ports
• 6× 10G SFP+ Slots
• 2× USB 2.0 Ports
• 1× RJ45 Console Port
• 1× USB Type-C Console Port
• 1× RJ45 Management Port
Fan Quantity Four Field-replaceable and Hot-swappable Fans
Power Supply Two Field-replaceable and Hot-swappable Power Supply Modules** (100–240 VAC, 50/60 Hz)
**Shipping with one PSM900-AC module by default, and another field-replaceable redundant power supply requires purchasing separately.
PoE Ports (RJ45) • Standard: 802.3at/af compliant
• PoE+ Ports: 48 Ports, up to 30 W per port
• PoE Power Budget: up to 1440 W*
*The total PoE budget varies with the power supply modules.
Dimensions ( W x D x H ) 17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm)
Mounting Rackmountable
Max Power Consumption • 67.24 W (110 V/60 Hz) (With no PD connected)
• 1767.7 W (110 V/60 Hz) (With 1440W PD connected and powered by 2× PSM900-AC)
Max Heat Dissipation • 229.29 BTU/hr (110 V/60 Hz) (With no PD connected)
• 6,027.86 BTU/hr (110 V/60 Hz) (With 1440W PD connected and powered by 2× PSM900-AC)
PERFORMANCE
Switching Capacity 216 Gbps per Unit
Stacking • Stacking Number: 8
• Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)
• Stack Bandwidth: Up to 120 Gbps (6 stack ports)
Packet Forwarding Rate 160.7 Mpps
MAC Address Table 32 K
Packet Buffer Memory 3 MB
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service • Class of Service
- 8 Queues of Priority
- Port Priority
- IEEE 802.1p Priority
- DSCP Priority
- Queue Min-Bandwidth
- Schedule Mode (SP, WRR, SP+WRR)
• Bandwidth Control
- Rate Limit
- Storm Control
• Voice VLAN
• User-Defined OUI
• Smoother Performance
• Action for Flows
- QoS remark (802.1P Remark, DSCP Remark)
L3 Features • IP Interfaces:
- IPv4: Max 256, IPv6: Max 256
• Static Routing
- Max 1,024, IPv6: Max 512
• Host Route Table: Max 6,100 entries
• RIP: Version v1/v2, Max 8,190
• OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097
• VRRP: Version v2/v3, Max 64 groups
• ECMP: 256 entries, max 32 ECMP Nexthops per Destination
• Static ARP: 512 static entries
• Dynamic ARP: 7,680 dynamic entries
• Proxy ARP
• DHCP Server:
- Max 8K IP Pools
- Max 1,000 Manual Binding Entries
• DHCP Relay:
- Relayed Interface
- Relayed VLAN
L2 and L2+ Features • Link Aggregation
• Spanning Tree Protocol
• Port-based and VLAN-based Loopback Detection
• 802.3x Flow Control
• Supports 2,048 IGMP groups
• ERPS
• Mirroring
• RSPAN
• MAC Address Table
• PIM-DM (IPv4)
• Multicast
- IGMP Snooping
- MLD Snooping
- L2 Multicast Table
- Fast Leave
- Multicast VLAN Registration (MVR)
- Static Multicast IP
- Multicast Filtering
Advanced Features • Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Intelligent Network Monitoring†
• Abnormal Event Warnings†
• Unified Configuration†
• Reboot Schedule†
ISP Features:
• 802.3ah Ethernet Link OAM
• L2PT (Layer 2 Protocol Tunneling)
• Device Link Detect Protocol (DLDP)
• DDM
• sFlow
VLAN • Max 4K VLAN Group (802.1q VLAN)
• 802.1Q Tagged VLAN
• MAC VLAN Entries: 200
• Multicast VLAN
• Management VLAN
• VLAN VPN (QinQ): Max 256 entries
• GVRP
• Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
• VLAN VPN
• Voice VLAN
• Private VLAN
Security • Port Isolation
• CPU-Defend
• ARP Inspection (Dynamic ARP Inspection)
• DoS Defend
• IP-MAC-Port Binding
-1,024 Entries
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard
• IPv6-MAC
-Port Binding
-1,024 Entries
- DHCPv6 Snooping
- ND Detection
- ND Snooping
- IPv6 Source Guard
• DHCP Filter
• Static/Dynamic Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unknown-unicast Storm Control
- kbps/ratio control mode
• 802.1X
- Port base authentication
- Mac base authentication
- VLAN Assignment
- MAB
- Guest VLAN
- RADIUS authentication and accountability support
• AAA (including TACACS+)
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv2
• IP/Port/MAC-based access control
MANAGEMENT
Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features • Web-based GUI
• Command Line Interface (CLI) through console port, telnet
• SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP Auto Install
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• Password Recovery
• SNTP
• System Log
• EEE
OTHERS
Package Contents • SG6654XHP Switch
• Power Cord
• RJ45 Console Cable
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
Environment • Operating Temperature:
-5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters
-5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters
• Storage Temperature: -40 °C to 70 ? (-40 °F to 158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

Technické parametry

Funkce L2
Podporované standardy PoE 802.3af
Ventilátor Ano
Počet portů LAN 48
Počet SFP+ portů 6
PoE budget (W) 1440
Přenosová rychlost LAN (Mb/s) 1000
Maximální počet portů 54
Počet PoE+ portů 48
Provedení Rack mounted 19"
Technologie Gigabit ethernet + 10 Gigabit optika
Management Web
Vlastnosti switche Funkce POE po portech
