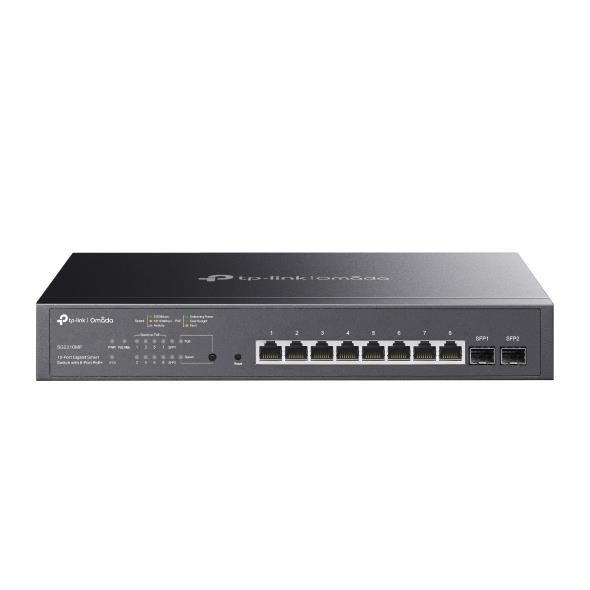

TP-Link OMADA switch SG2210MP (8xGbE,2xSFP,8xPoE+,150W,fanless)

TP-Link OMADA switch SG2210MP (8xGbE,2xSFP,8xPoE+,150W,fanless)
TP-Link OMADA switch SG2210MP (8xGbE,2xSFP,8xPoE+,150W,fanless)
TP-Link OMADA switch SG2210MP (8xGbE,2xSFP,8xPoE+,150W,fanless)
TP-Link OMADA switch SG2210MP (8xGbE,2xSFP,8xPoE+,150W,fanless)

Provedení:Desktop, Rack mounted 19"; Funkce:QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ethernet), DHCP snooping, L2, Web management/Smart switch; Technologie:Gigabit ethernet + Gigabit optika; Počet portů LAN:8; Podporované standardy PoE:802.3af, 802.3at; PoE budget (W):150; Počet SFP portů:2; Maximální počet portů:10

Vaše cena: 3 437,30 Kč

Košík:

ks
Koupit
Dostupnost: 2,00

Informace o ceně

Vaše cena bez SNC:
3 437,30 Kč
  • SNC:
    1,70 Kč
  • Vaše cena celkem:
    3 437,30 Kč
Kód:
324113
P/N:
SG2210MP
Záruka:
60 Měsíc(ů)
Výrobce:
TP-link
Zástupce v EU:
EAN:
6935364030674
Tisk produktové nabídky Porovnat produkt

Podrobnosti

TP-Link OMADA switch SG2210MP

10portový gigabitový inteligentní switch s 8 porty PoE+

  • Příkon přes PoE až 150 W: 8 portů napájených přes PoE+ vyhovující standardu 802.3at/ af s celkovým napájením až 150W.
  • Plné gigabitové porty: 8 gigabitových portů s napájením přes PoE + a 2 gigabitové SFP sloty poskytují vysokorychlostní připojení.
  • Integrováno do Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralizovaná správa cloudů a inteligentní monitorování.
  • Centralizovaná správa: Přistup do cloudu a aplikace Omada pro mimořádné pohodlí a snadnou správu.
  • Robustní bezpečnostní strategie: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, ověřování dosahu, a více.
  • Optimalizujte hlasové a video aplikace: L2/L3/L4 QoS a IGMP snooping.

Více informací o technologii TP-Link PoE >

Více informací o Omada Cloud SDN>?

Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-sdn-switch/tl-sg2210mp/

Technické specifikace

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface • 8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX)
• 2× 100/1000 Mbps SFP Slots
Network Media • 10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m)
• 100BASE-FX: MMF, SMF
• 1000BASE-X: MMF, SMF
Physical Security Lock Yes
Power Supply 100-240V AC, 50/60Hz
PoE+ Ports(RJ45) • Standard: 802.3at/af compliant
• PoE+ Ports: 8 Ports
• Power Supply: 150 W
PoE Ports (RJ45) • Standard: 802.3at/af compliant
• PoE+ Ports: 8 Ports
• PoE Power Budget: 150 W
Dimensions ( W x D x H ) 11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm)
Mounting Rackmount/Desktop
Max Power Consumption • 12.2 W (110 V / 60 Hz with no PD connected)
• 173.9 W (110 V / 60 Hz with 150 W PD connected)
Max Heat Dissipation • 41.63 BTU/h (with no PD connected)
• 539.35 BTU/h (with 150 W PD connected)
PERFORMANCE
Switching Capacity 20 Gbps
Packet Forwarding Rate 14.9 Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service • 802.1p CoS/DSCP priority
• 8 priority queues
• Priority Schedule Mode
- SP (Strict Priority)
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port/Flow based Rating Limit
• Smoother Performance
• Storm Control
- Multiple Control Modes(kbps/ratio)
- Broadcast/Multicast/Unknown-Unicast Control
L2 and L2+ Features • DHCP Relay
- DHCP VLAN Relay
• DHCP L2 Relay
• Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports
per group
• Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter/Protect,
Root Protect
• Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Flow-Based
- Ingress/Egress/Both
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED
L2 Multicast • 511 IPv4, IPv6 shared multicast groups
• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- Static Group Config
• Multicast VLAN Registration (MVR)
• Multicast Filtering
• MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
• Limited IP Multicast (256 profiles and 16 entries per profile)
IPv6 Support • IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP)
version 6
• TCPv6/UDPv6
• IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP
VLAN • VLAN Group
- Max. 4K VLAN Groups
• 802.1Q tag VLAN
• MAC VLAN
• Protocol VLAN
• GVRP
• Voice VLAN
Access Control List • Support up to 230 entries
• Time-Range
- Time Slice
- Week Time-Range
- Absolute Time-Range
- Holiday
• Time-based ACL
• MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
• IP ACL
- Source IP
- Destination IP
- IP Protocol
- TCP Flag
- TCP/UDP Source Port
- TCP/UDP Destination Port
- DSCP/IP TOS
• IPv6 ACL
• Combined ACL
• Rule Operation
- Permit/Deny
• Policy Action
- Mirror
- Rate Limit
- Redirect
- QoS Remark
• ACL Rules Binding
- Port Binding
- VLAN Binding
• Actions for flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark
Security • AAA
• 802.1X
- Port based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Support Radius authentication and
accountability
• IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
• IP Source Guard
- 253 Entries
- Source IP+Source MAC
• IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
• DoS Defend
• Static/Dynamic/Permanent Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
• Port Isolation
• Secure web management through HTTPS with
SSLv3/TLS 1.2
• Secure Command Line Interface (CLI)
management with SSHv1/SSHv2
• IP/Port/MAC based access control
IPv6 • IPv6 Static Routing and ACL
• IPv6 Dual IPv4/IPv6
• IPv6 Interface
• Multicast Listener Discovery (MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP)
version 6
• TCPv6/UDPv6
• IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet(v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP
Advanced Features • Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
MIBs • MIB II (RFC1213)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIBs
• RMON MIB(RFC1757, rmon 1,2,3,9)
MANAGEMENT
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2210MP v1, v3 and above, while is not supported by TL-SG2210MP v2)
Management Features • Web-based GUI
• Command Line Interface (CLI) through telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log
OTHERS
Certification CE, FCC, RoHS
Package Contents • TL-SG2210MP
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10, MAC OS, NetWare, UNIX or Linux.
Environment • Operating Temperature: 0–50 °C (32–122 °F);
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

Technické parametry

Funkce L2
Podporované standardy PoE 802.3af
Ventilátor Ne
Počet portů LAN 8
Počet SFP portů 2
PoE budget (W) 150
Maximální počet portů 10
Počet PoE+ portů 8
Provedení Desktop
Technologie Gigabit ethernet + Gigabit optika
Management Web
Vlastnosti switche Funkce POE po portech
