TP-Link OMADA switch SG2206MP (5xGbE,1xSFP,4xPoE+,63W,fanless)

TP-Link OMADA switch SG2206MP (5xGbE,1xSFP,4xPoE+,63W,fanless)
TP-Link OMADA switch SG2206MP (5xGbE,1xSFP,4xPoE+,63W,fanless)
TP-Link OMADA switch SG2206MP (5xGbE,1xSFP,4xPoE+,63W,fanless)
TP-Link OMADA switch SG2206MP (5xGbE,1xSFP,4xPoE+,63W,fanless)
TP-Link OMADA switch SG2206MP (5xGbE,1xSFP,4xPoE+,63W,fanless)

Provedení:Desktop; Funkce:QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ethernet), DHCP snooping, L2, Web management/Smart switch; Technologie:Gigabit ethernet + Gigabit optika; Počet portů LAN:4; Podporované standardy PoE:802.3af, 802.3at; PoE budget (W):63; Počet SFP portů:1; Maximální počet portů:6; Počet PoE+ portů:4

Vaše cena: 2 031,30 Kč

Košík:

ks
Koupit
Dostupnost: 4,00

Informace o ceně

Vaše cena bez SNC:
2 031,30 Kč
  • SNC:
    1,70 Kč
  • Vaše cena celkem:
    2 031,30 Kč
Kód:
324482
P/N:
SG2206MP
Záruka:
60 Měsíc(ů)
Výrobce:
TP-link
Zástupce v EU:
EAN:
1210002602402
Tisk produktové nabídky Porovnat produkt

Podrobnosti

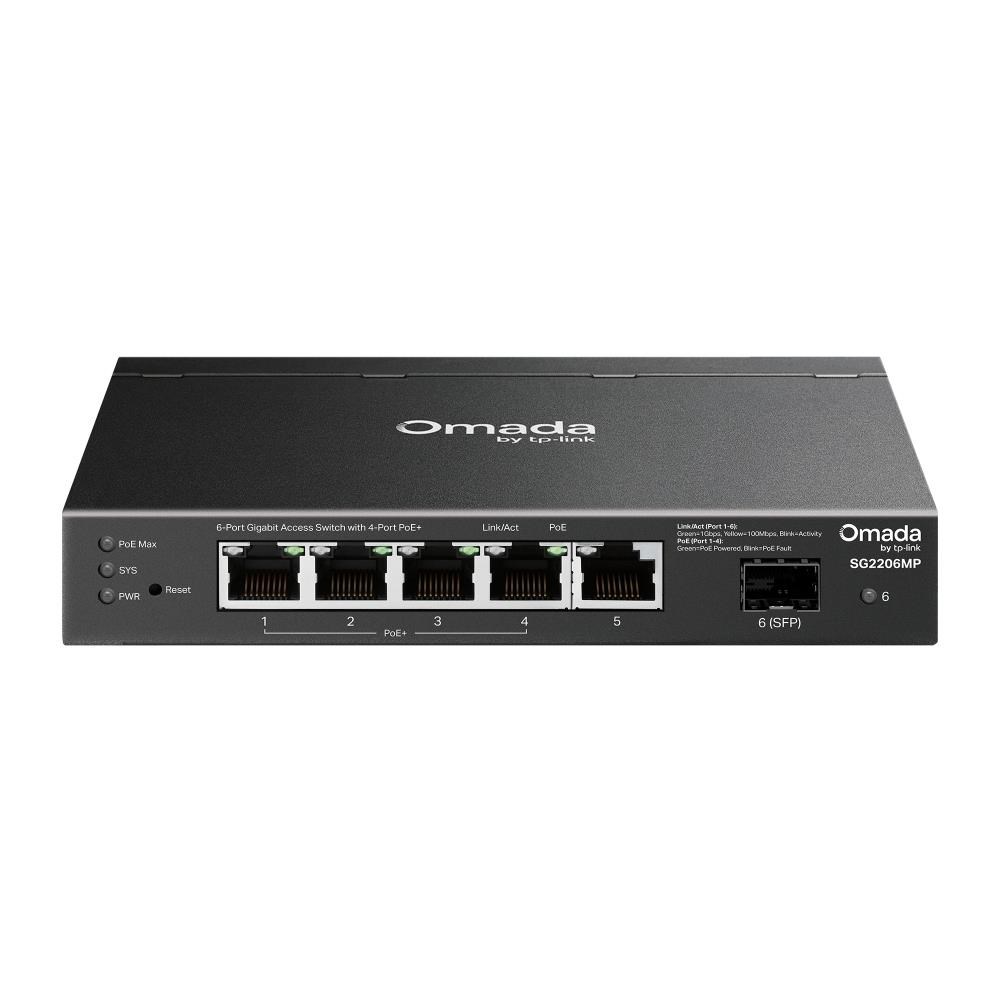

TP-Link OMADA switch SG2206MP

Omada Access 6portový gigabitový switch se 4 porty PoE+

  • 5× gigabitových RJ45 portů (4× PoE+) a 1× gigabitový SFP slot
  • Celkový PoE rozpočet 63 W, až 30 W na každý PoE+ port*
  • Centralizovaná cloudová správa přes web nebo aplikaci Omada†
  • Samostatná správa přes web, CLI, SNMP a RMON
  • Statické směrování pomáhá efektivněji směrovat interní provoz
  • VLAN, ACL, QoS a IGMP Snooping
  • Odolné kovové pouzdro a provedení pro umístění na stůl nebo montáž na stěnu

Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-switch-access/sg2206mp

Technické specifikace

HARDWARE FEATURES
Interface • 4× 10/100/1000 Mbps PoE+ RJ45 Ports
• 1× 10/100/1000 Mbps RJ45 Port
• 1× Gigabit SFP Slot
Physical Security Lock ?
Power Supply 53.5 VDC / 1.31 A
PoE Ports (RJ45) • Standard: 802.3at/af compliant
• PoE+ Ports: 4 Ports
• PoE Power Budget: 63 W*
• Fast PoE
• Perpetual PoE
Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in (158 × 100.7 × 25.4 mm)
Mounting Desktop / Wall Mounting
Max. Power Consumption 73.7 W (110V/60Hz) (with 63 W PD connected)
Max. Heat Dissipation 250.4 BTU/hr (110V/60Hz) (with 63 W PD connected)
PERFORMANCE
Switching Capacity 12 Gbps
Packet Forwarding Rate 8.93 Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service • 802.1p CoS/DSCP priority
• 8 priority queues
• Priority Schedule Mode
- SP (Strict Priority)
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port/Flow based Rating Limit
• Storm Control
- Multiple Control Modes(kbps/ratio)
- Broadcast/Multicast/Unknown-Unicast Control
L2 and L2+ Features • 16 IP Interfaces: Support IPv4/IPv6 Interface
• Static Routing: 32 IPv4/IPv6 Static Routes
• DHCP Server
• DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
• DHCP L2 Relay
• Static ARP
• Proxy ARP
• Gratuitous ARP
• Link Aggregation
• Spanning Tree Protocol
• Loopback Detection
• 802.3x Flow Control
• Mirroring
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED
• Spanning Tree
- STP (802.1d)
- RSTP (802.1w)
- MSTP (802.1s)
- STP Security: TC Protect, BPDU Filter/Protect, Root Protect
L2 Multicast • 511 IPv4, IPv6 shared multicast groups
• IGMP Snooping
• Multicast VLAN Registration (MVR)
• Multicast Filtering
• Limited IP Multicast (256 profiles and 16 entries per profile)
Advanced Features • Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Intelligent Network Monitoring†
• Abnormal Event Warnings†
• Unified Configuration†
• Reboot Schedule†
VLAN • VLAN Group
- Max. 4K VLAN Groups
• 802.1Q tag VLAN
• MAC VLAN: 16 Entries
• Protocol VLAN
• GVRP
• Voice VLAN
Access Control List • Support up to 230 entries
• Time-Range
• Time-based ACL
• MAC ACL
• IP ACL
• IPv6 ACL
• Combined ACL
• Rule Operation: Permit/Deny
• Policy Action
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
• ACL Rules Binding
- Port Binding
- VLAN Binding
Security • IP-MAC-Port Binding
• AAA
• 802.1X
- Port-based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Support Radius authentication and accountability
• IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
- ND Snooping
• IP Source Guard
- 253 Entries
- Source IP+Source MAC
• IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
• DoS Defend
• DHCP Filter
• Static/Dynamic/Permanent Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC-based access control
IPv6 • IPv6 Static Routing and ACL
• IPv6 Dual IPv4/IPv6
• IPv6 Interface
• Multicast Listener Discovery (MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet(v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP
MIBs • MIB II (RFC1213)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIBs
• RMON MIB(RFC1757, rmon 1,2,3,9)
Management Features
Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later)
• Omada Hardware Controller (Requires built-in version 5.15.20 or later)
• Omada Software Controller (Requires built-in version 5.15.20 or later)
Cloud Access Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller
Management Features • Web-based GUI
• Command Line Interface (CLI) through telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• IEEE 802.1az Energy Efficient Ethernet (EEE)
• SNTP
• System Log
• Digital Diagnostic Monitoring (DDM)
• Operation Administration and Maintenance (OAM)
OTHERS
Certification CE, FCC, RoHS
Package Content • SG2206MP
• Power Adapter
• Power Cord
• Rackmount Kit
• Rubber Feet
• Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
Environment • Operating Temperature: -5–40 ? (23–104 ?);
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH, non-condensing
• Storage Humidity: 5–90% RH, non-condensing

Technické parametry

Funkce L2
Podporované standardy PoE 802.3af
Ventilátor Ne
Počet portů LAN 4
Počet SFP portů 1
PoE budget (W) 63
Maximální počet portů 6
Počet PoE+ portů 4
Provedení Desktop
Technologie Gigabit ethernet + Gigabit optika
Management Web
Vlastnosti switche Funkce POE po portech
