| 4G |
| Network Type | 4G:
FDD-LTE B1/B3/B5/B7/B8/B20/B28
(2100/1800/850/2600/900/800/700 MHz)
TDD-LTE B38/B40/B41 (2600/2300/2500 MHz)
3G:
HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) |
| Speed | Download Speed: 150Mbps
Upload Speed: 50Mbps |
| HARDWARE FEATURES |
| Interface | USB-C port
Nano SIM card slot
microSD card slot |
| Button | Menu button
Power On/Off Button
Reset Button |
| External Power Supply | 5V/1A |
| Weight | About 111g (Battery included) |
| Dimensions ( W x D x H ) | 4.2 × 2.6 × 0.7 in. (106 × 66 × 16.7 mm) |
| Antenna | Internal Antenna |
| Micro SD Card Reader | Up to 2TB |
| Screen Display | Traffic statistics, Wi-Fi status, User numbers, Network type (4G/3G), Signal strength, Internet connection status, Messages, Battery meter, Wi-Fi password |
| WIRELESS FEATURES |
| Wireless Standards | IEEE 802.11b/g/n/ax |
| Frequency | 2.4 GHz |
| Reception Sensitivity | 11b 11Mbps: -87dBm;
11g 54Mbps: -73dBm;
11n HT20 MCS7: - dBm;
11n HT40 MCS7: -67dBm;
11ax HE20M MCS9:-65dBm;
11ax HE40M MCS9:-62dBm; |
| Wireless Security | Support WPA-PSK/WPA2-PSK, WPA3, Wireless MAC Filtering, Enable/Disable SSID Broadcast |
| DHCP | Server, Client, DHCP Client List |
| Transmission Power | <20dbm |
| OTHERS |
| Network Services Enabled by Default | Web Server
Manage and configure device through web or app
• Port: 80/443 Protocol: HTTP/HTTPS
DNS
DNS
• Port: 53; Protocol: UDP
DHCP/DHCPv6
IP address assignment
• Port: 67/547; Protocol: UDP |
| Certification | CE, RoHS |

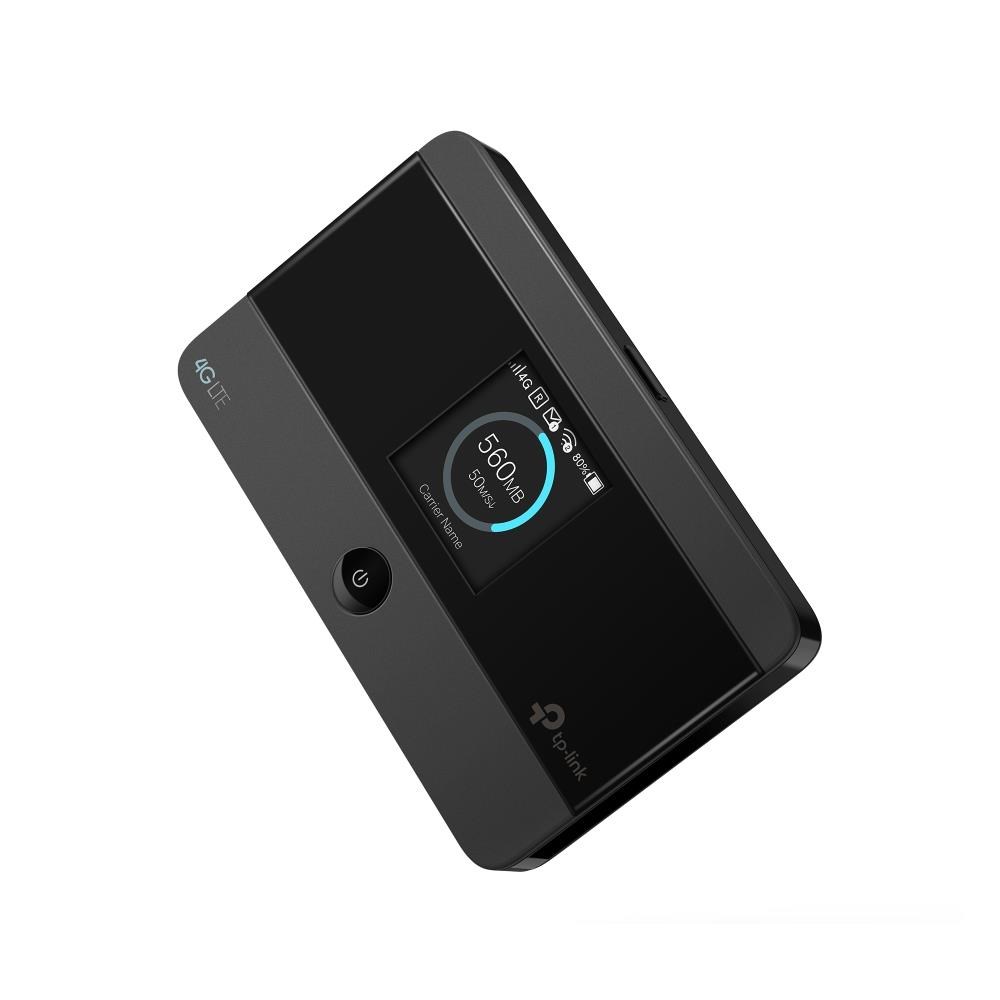

| Package Content | 4G LTE Mobile Wi-Fi M7352
USB-C Cable
Quick Installation Guide
2100mAh Battery |
| System Requirements | Windows 11/10/8/7/vista/XP, Mac OS, Android, iOS, Windows Phone |
| Environment | Operating Temperature: 0°C~35°C (32°F~95°F)
Operating Humidity: 10%~90% non-condensing |
