| HARDWARE FEATURES |
| Interface | 1x Gigabit Ethernet Port |
| Button | Reset |
| Power Supply | • 802.3at PoE
• 48V Passive PoE
Note: PoE adapter is not included. |
| Power Consumption | • EU: 12.5W (802.3at PoE or Passive PoE)
• US: 14.7W (802.3at PoE or Passive PoE) |
| Dimensions ( W x D x H ) | 7.2 × 2.2 × 11.1 in (182.2 × 57 × 281 mm)*5 |
| Antenna Type | 2× External Dual-Band Omni Antennas
• 2.4 GHz: 3.0 dBi;
• 5 GHz: 5.0 dBi |
| Bluetooth | V5.2 |
| Weatherproof Enclosure | IP67 |
| Mounting | Pole/Wall Mounting (Kits included)
|
| WIRELESS FEATURES |
| Concurrent Clients | 1,020+3 |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 5 GHz, and 2.4 GHz |
| Signal Rate | • 5 GHz: Up to 1201 Mbps
• 2.4 GHz: Up to 574 Mbps |
| Wireless Functions | • Mesh*4
• Seamless Roaming(802.11k/v/r)*4
• Automatic Channel Assignment
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDs:16 (8 for each band)
• MU-MIMO (2x2 MU-MIMO DL)
• Wireless Statistics
• Wireless Schedule
• Reboot Schedule
• RADIUS Accounting
• MAC Authentication
• Static IP/Dynamic IP |
| Wireless Security | • VLAN
• Access Control
• Rogue AP Detection
• Captive Portal Authentication*4
• Maximum number of MAC Filter: 4,000
• Wireless Isolation between Clients
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
• 802.1X Support |
| Transmission Power | • CE: < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP);
• FCC: < 25 dBm (2.4 GHz), < 25 dBm (5 GHz)
|
| MANAGEMENT |
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller |
| Cloud Access | Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-based Management | Yes
|
| OTHERS |
| Certification | CE, FCC, RoHS |

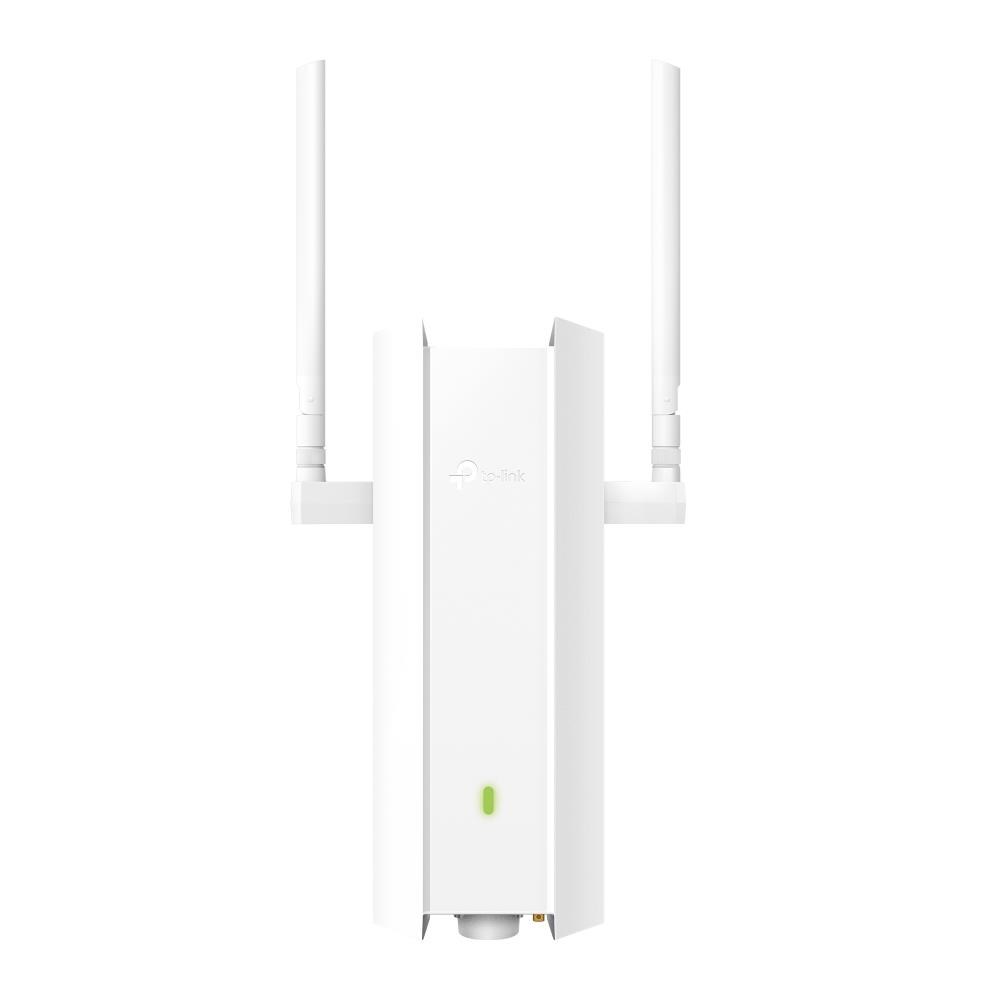

| Package Contents | • EAP625-Outdoor HD
• 2× Detachable Antennas
• Installation Guide
• Mounting Kit
• Waterproof Kit |
| Environment | • Operating Temperature: -30 °C–70 °C (-22 °F–158 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing |
