| WIRELESS | |
| Standards | Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds | AC1900
5 GHz: 1300 Mbps (802.11ac)
2.4 GHz: 600 Mbps (802.11n) |
| WiFi Range | 3 Bedroom Houses
4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range |
| WiFi Capacity | Medium
Dual-Band
Allocate devices to different bands for optimal performance
3×3 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation |
| Working Modes | Router Mode
Access Point Mode |
| HARDWARE | |
| Processor | 1.2 GHz CPU |
| Ethernet Ports | 1× Gigabit WAN Port
4× Gigabit LAN Ports |
| Buttons | WPS/Wi-Fi Button
Power On/Off Button
Reset Button |
| Power | US Version
12 V - 1.5 A
EU Version
12 V - 1 A |
| SECURITY | |
| WiFi Encryption | WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x) |
| Network Security | SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway |
| Guest Network | 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network |
| SOFTWARE | |
| Protocols | IPv4
IPv6 |
| OneMesh™ | OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
|
| Parental Controls | URL Filtering
Time Controls |
| WAN Types | Dynamic IP
Static IP
PPPoE
PPTP
L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | OTA Firmware Upgrade
TP-Link ID
DDNS |
| NAT Forwarding | Port Forwarding
Port Triggering
DMZ
UPnP |
| IPTV | IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN |
| DHCP | Address Reservation
DHCP Client List
Server |
| DDNS | TP-Link
NO-IP
DynDNS |
| Management | Tether App
Webpage
|
| PHYSICAL | |
| Dimensions (W×D×H) | 8.5 × 4.6 × 1.26 in
(215 × 117 × 32 mm) |

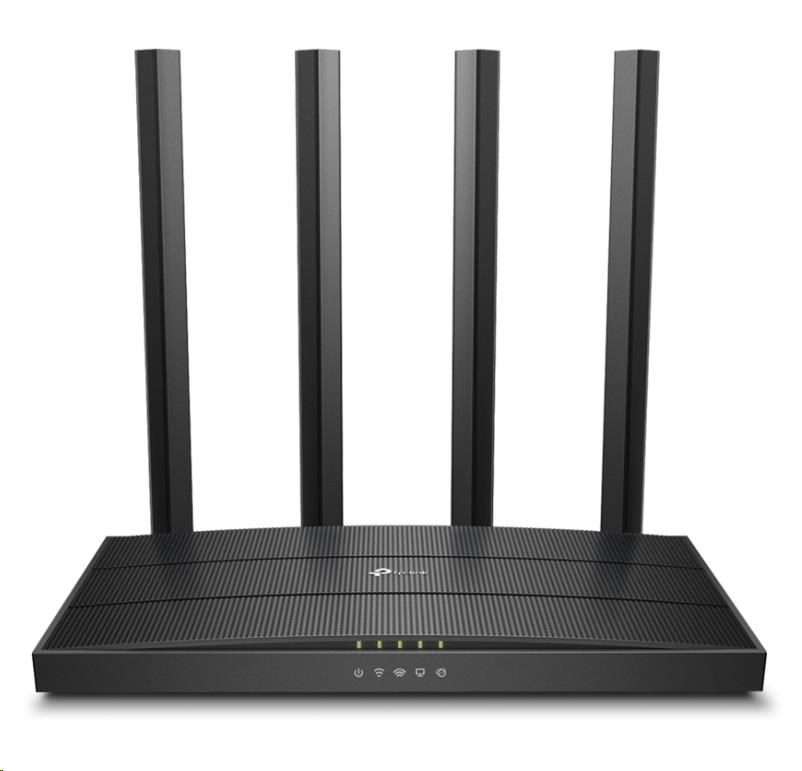

| Package Contents | Wi-Fi Router Archer C80
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide |
| OTHERS | |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
| WiFi Transmission Power | CE:
<20dBm(2.4GHz)
<23dBm(5.15GHz~5.25GHz)
FCC:
<30dBm(2.4GHz & 5GHz) |
| WiFi Reception Sensitivity | 5GHz:
11a 6Mbps:-98dBm, 11a 54Mbps:-78dBm
11ac VHT20_MCS0:-98dBm, 11ac VHT20_MCS8:-72dBm
11ac VHT40_MCS0:-92dBm, 11ac VHT40_MCS9:-68dBm
11ac VHT80_MCS0:-89dBm, 11ac VHT80_MCS9:-64dBm
2.4GHz:
11g 6Mbps:-97dBm, 11a 54Mbps:-77dBm
11n VHT20_MCS0:-97dBm, 11n VHT20_MCS8:-72dBm
11n VHT40_MCS0:-92dBm, 11n VHT40_MCS9:-67dBm |
