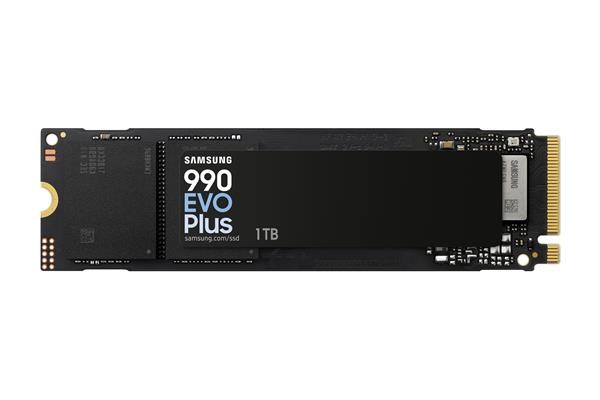

| Model Code |
MZ-V9S1T0BW |
| Attribute |
Value |
| General Feature |
Application |
Client PCs |
| Capacity |
2,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise) |
| Form Factor |
M.2 (2280) |
| Interface |
PCIe 4.0 x4 / 5.0 x2 NVMe™ 2.0 |
| Dimension (WxHxD) |
Max 80.15 x Max 22.15 x Max 2.38 mm |
| Weight |
Max 9.0g Weight |
| Storage Memory |
Samsung V-NAND TLC |
| Controller |
Samsung in-house Controller |
| Cache Memory |
HMB(Host Memory Buffer) |
| Special Feature |
TRIM Support |
Supported |
| S.M.A.R.T Support |
Supported |
| GC (Garbage Collection) |
Auto Garbage Collection Algorithm |
| Encryption Support |
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive) |
| WWN Support |
Not supported |
| Device Sleep Mode Support |
Yes |
| Performance |
Sequential Read |
Up to 7,150 MB/s * Performance may vary based on system hardware & configuration |
| Sequential Write |
Up to 6,300 MB/s * Performance may vary based on system hardware & configuration |
| Random Read (4KB, QD32) |
Up to 850,000 IOPS * Performance may vary based on system hardware & configuration |
| Random Write (4KB, QD32) |
Up to 1,350,000 IOPS * Performance may vary based on system hardware & configuration |
| Environment |
Average Power Consumption (System Level) |
Average: Read 4.3 W / Write 4.2 W* Actual power consumption may vary depending on system hardware & configuration |
| Power Consumption (Idle) |
Typical 60 mW * Actual power consumption may vary depending on system hardware & configuration |
| Power Consumption (Device Sleep) |
Typical 5 mW * Actual power consumption may vary depending on system hardware & configuration |
| Allowable Voltage |
3.3 V ± 5 % Allowable voltage |
| Reliability (MTBF) |
1.5 Million Hours Reliability (MTBF) |
| Operating Temperature |
0 - 70 ? Operating Temperature |
| Shock |
1,500 G & 0.5 ms (Half sine) |
| Accessories |
Installation Kit |
Not Available |
| Software |
Management SW |
Magician Software for SSD management |
| Warranty |
5-year Limited Warranty or 600TBW Limited Warranty |
