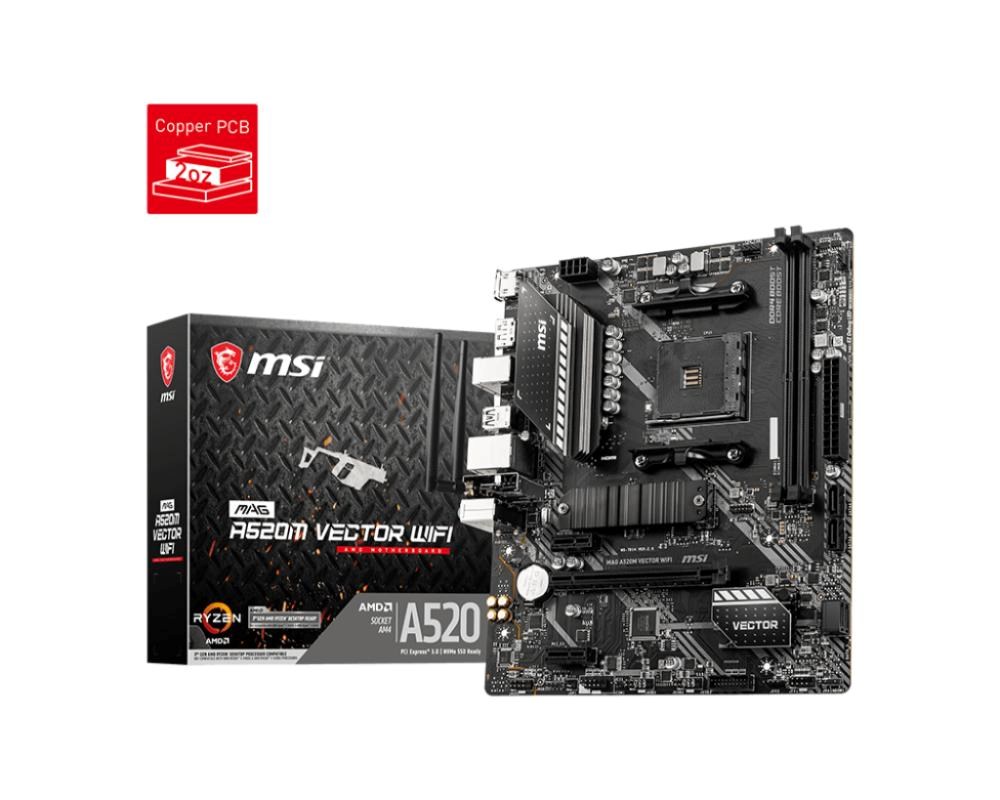

MSI MB Sc AM4 MAG A520M VECTOR WIFI, AMD A520, 2x DDR4, WiFi, 1x DP, 1x HDMI, m-ATX

CPU
Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors

Chipset
AMD A520 Chipset

Memory
2x DDR4 memory slots, support up to 64GB
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
1DPC 1R max speed 4600 MHz
1DPC 2R max speed 3866 MHz
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory

Onboard Graphics
1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz*
1x DisplayPort 1.4 port, supports a maximum resolution of 4096x2160 @60Hz
Maximum shared memory of 16GB
* Support HDCP 1.4 & 2.3

Expansion Slot
1x PCIe 3.0 x16 slot (From AMD processor)
Supports x16 speed with Ryzen™ 5000, 5000G, 4000G and 3000 processors
Supports x8 speed with Ryzen™ 3000G processors
Supports x4 speed with AMD Athlon™ with Radeon Graphics processors
2x PCIe 3.0 x1 slots

Storage
AMD A520 Chipset
4x SATA 6Gb/s ports
1x M.2 slot (Key M) (from AMD processor)
Supports PCIe 3.0 x4 & SATA 6G/s with Ryzen™ 5000, 5000G, 4000G, 3000 and 3000G processors
Supports SATA 6Gb/s with Athlon™ with Radeon™ Vega Graphics processors
Supports 2242/ 2260/ 2280 storage devices

RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

USB
AMD A520 Chipset
2x USB 3.2 Gen 1 5Gbps ports (internal connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Audio
Realtek ALC892/ALC897 Codec
7.1-Channel High Definition Audio

LAN
1x Realtek RTL8111H LAN controller

Wireless LAN & Bluetooth
WIFI 5
Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed
Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2

Internal connectors
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x M.2 slot (M-Key)
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 4-pin RGB LED connector
1x 3-pin RAINBOW LED connector
1x TPM module connector
1x Serial port connector
1x Clear CMOS jumper

Back panel ports
Keyboard / Mouse
LAN port
Wi-Fi Antenna connectors
Audio Connectors
HDMI™
DisplayPort
USB 2.0 Ports
USB 3.2 Gen 1 5Gbps Type-A

Dimensions
M-ATX Form Factor
9.6 in. x 8.3 in. (24.4 cm x 21 cm)

Mounting
6 mounting holes
