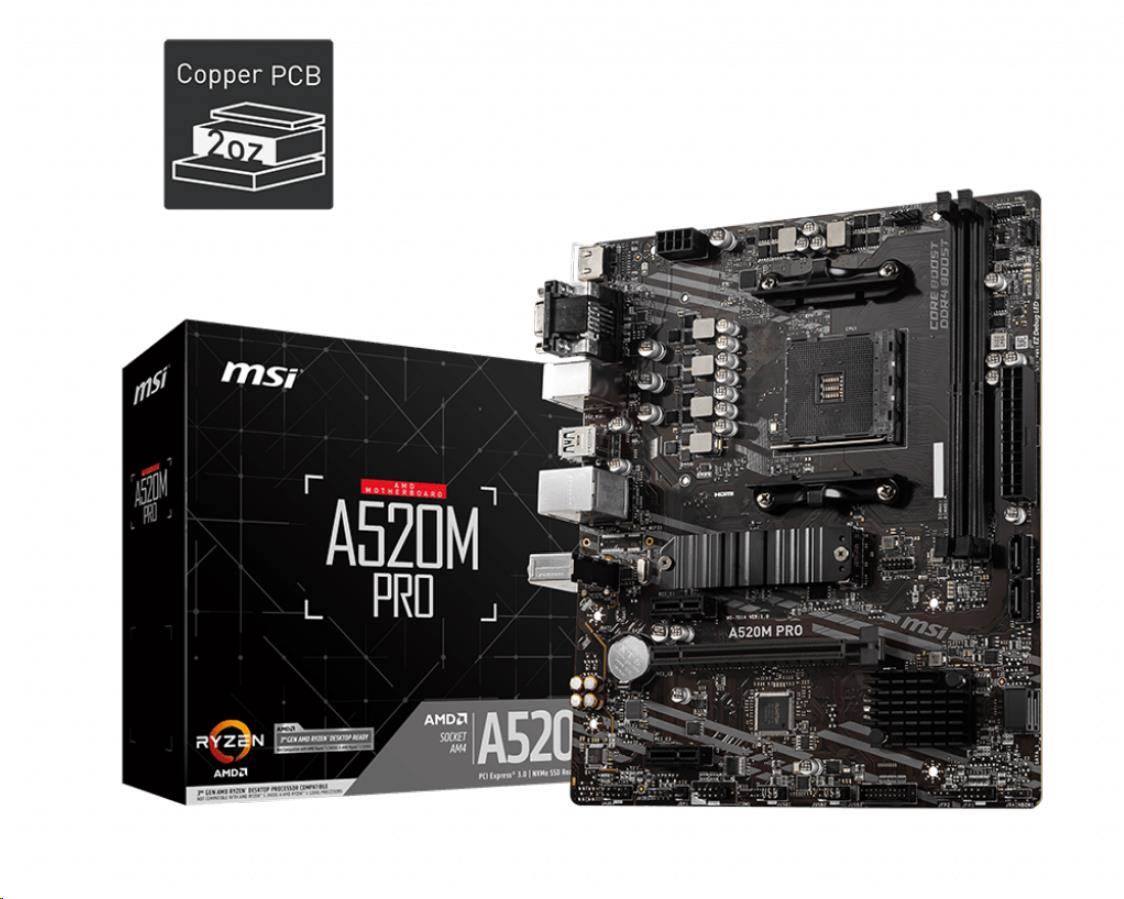

MSI MB Sc AM4 A520M PRO, AMD A520, VGA, 2xDDR4, mATX

MSI MB Sc AM4 A520M PRO, AMD A520, VGA, 2xDDR4, mATX
MSI MB Sc AM4 A520M PRO, AMD A520, VGA, 2xDDR4, mATX
MSI MB Sc AM4 A520M PRO, AMD A520, VGA, 2xDDR4, mATX
MSI MB Sc AM4 A520M PRO, AMD A520, VGA, 2xDDR4, mATX
MSI MB Sc AM4 A520M PRO, AMD A520, VGA, 2xDDR4, mATX

Formát základní desky:micro ATX; Chipset:Intel B360, AMD A520; Socket (patice):Socket AM4; Pro procesory:AMD; Technologie paměti RAM:DDR4; Počet paměťových slotů:2; M.2 slot:1; SATA 3:4; Podpora RAID:1, 10; PCI Express x16:1; PCI Express x1:2; LAN:1Gbit/s; Bezdrátové připojení:bez; DisplayPort:1; HDMI:1; VGA:1; DVI:0; USB 2:6; USB 3:6; TPM; 3.5mm Jack

Vaše cena: 1 089,50 Kč

Košík:

ks
Koupit
Dostupnost: 7,00

Informace o ceně

Vaše cena bez SNC:
1 089,50 Kč
  • SNC:
    1,50 Kč
  • Vaše cena celkem:
    1 089,50 Kč
Kód:
2647647
P/N:
A520M PRO
Záruka:
36 Měsíc(ů)
Výrobce:
MSI
Zástupce v EU:
EAN:
4719072755492
Tisk produktové nabídky Porovnat produkt

Podrobnosti

A520M PRO

  • Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors
  • Supports DDR4 Memory, up to 4600(OC) MHz
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability
  • 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability
  • Audio Boost: Reward your ears with studio grade sound quality
  • Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface

TECHNICAL SPECIFICATIONS

Socket AM4
CPU Support Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors
Chipset AMD A520 Chipset
Memory
  • 2x DDR4 memory slots, support up to 64GB
    - Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
    - Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
    - 1DPC 1R max speed 4600 MHz
    - 1DPC 2R max speed 3866 MHz
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory
Expansion Slot
  • 1x PCIe x16 slot (PCI_E2)
  • 2x PCIe 3.0 x1 slots
Onboard Graphics
Storage

AMD A520 Chipset

  • 4x SATA 6Gb/s ports
  • 1x M.2 slot (Key M) (from AMD Processor)
    - M2_1 slot (from AMD Processor)
    - Supports PCIe 3.0 x4 1
    - Supports SATA 6Gb/s
    - Supports 2242/ 2260/ 2280 storage devices
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
USB

AMD A520 Chipset

  • 2x USB 3.2 Gen 1 5Gbps ports (2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

  • 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
AUDIO

Realtek ALC892 Codec

  • 7.1-Channel High Definition Audio
LAN
  • 1x Realtek RTL8111H LAN controller
Internal Connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 1x Serial port connector
  • 1x M.2 slot (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin system fan connector
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x 4-pin RGB LED connector
  • 1x 3-pin RAINBOW LED connector
  • 1x TPM module connector
  • 1x Clear CMOS jumper
Back Panel Ports
  • VGA
  • Keyboard / Mouse
  • LAN port
  • HDMI
  • DisplayPort
  • USB 2.0 Ports
  • USB 3.2 Gen 1 5Gbps Type-A
  • USB 3.2 Gen 1 5Gbps Type-A
  • Audio Connectors
Dimensions
  • M-ATX Form Factor
  • 9.6 in. x 8.3 in. (24.4 cm x 21 cm)
Mounting
  • 6 mounting holes
Box Content
  • A520M Pro
  • Quick Installation Guide
  • MSI Case Badge
  • 2x SATA Cables
  • Product Registration Card
  • I/O Shielding
  • Driver DVD
Form Factor m-ATX
Operating System Support for Windows 10 64-bit

Technické parametry

Pro procesory AMD
Počet paměťových slotů 2
3.5mm Jack Ano
LAN 1Gbit/s
DisplayPort 1
Bezdrátové připojení bez
Led Header Ne
TPM Ano
PCI Express x1 2
USB 2 6
USB 3 6
M.2 slot 1
SATA 3 4
VGA 1
DVI 0
HDMI 1
LPT port Ne
Socket (patice) Socket AM4
Formát základní desky micro ATX
Chipset Intel B360
Technologie paměti RAM DDR4
PCI Express x16 1
Podpora RAID 1
