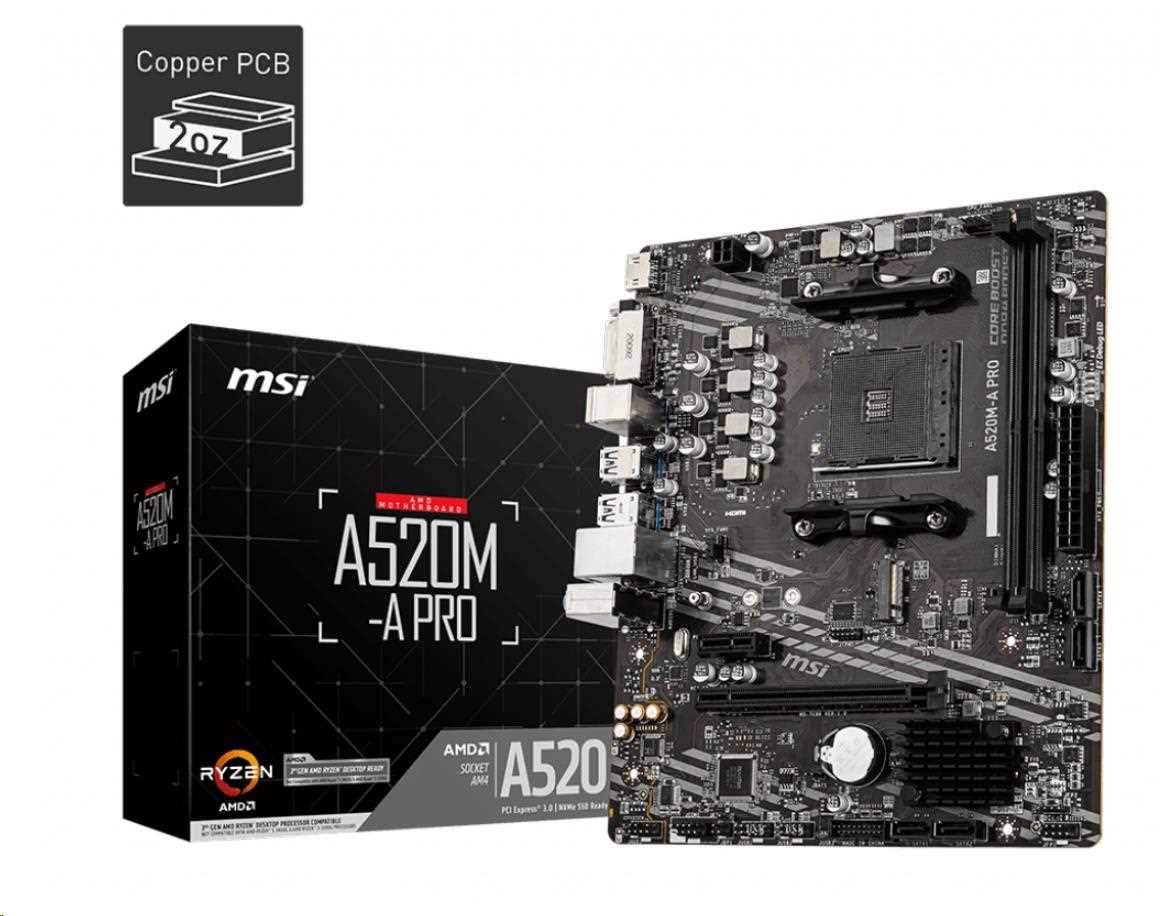

MSI MB Sc AM4 A520M-A PRO, AMD A520, 2xDDR4, m-ATX

MSI MB Sc AM4 A520M-A PRO, AMD A520, 2xDDR4, m-ATX
MSI MB Sc AM4 A520M-A PRO, AMD A520, 2xDDR4, m-ATX
MSI MB Sc AM4 A520M-A PRO, AMD A520, 2xDDR4, m-ATX
MSI MB Sc AM4 A520M-A PRO, AMD A520, 2xDDR4, m-ATX
MSI MB Sc AM4 A520M-A PRO, AMD A520, 2xDDR4, m-ATX

Formát základní desky:micro ATX; Chipset:AMD A520; Socket (patice):Socket AM4; Pro procesory:AMD; Technologie paměti RAM:DDR4; Počet paměťových slotů:2; M.2 slot:1; SATA 3:4; Podpora RAID:0, 1, 10; PCI Express x16:1; PCI Express x1:1; PCI:0; LAN:1Gbit/s; Bezdrátové připojení:bez; DisplayPort:0; HDMI:1; VGA:0; DVI:1; USB 2:6; USB 3:6; USB C:0; TPM

Vaše cena: 940,50 Kč

Košík:

ks
Koupit
Dostupnost: 100+

Informace o ceně

Vaše cena bez SNC:
940,50 Kč
  • SNC:
    1,50 Kč
  • Vaše cena celkem:
    940,50 Kč
Kód:
2647974
P/N:
A520M-A PRO
Záruka:
36 Měsíc(ů)
Výrobce:
MSI
Zástupce v EU:
EAN:
4719072749927
Tisk produktové nabídky Porovnat produkt

Podrobnosti

A520M-A PRO

  • Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors
  • Supports DDR4 Memory, up to 4600(OC) MHz
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
  • 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability.
  • Audio Boost: Reward your ears with studio grade sound quality
  • Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.

TECHNICAL SPECIFICATIONS

Socket AM4
CPU Support Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors
Chipset AMD A520 Chipset
Memory
  • 2x DDR4 memory slots, support up to 64GB 1
    - Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
    - Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
    - 1DPC 1R max speed 4600 MHz
    - 1DPC 2R max speed 3866 MHz
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory
Expansion Slot
  • 1x PCIe x16 slot
  • 1x PCIe 3.0 x1 slots
Onboard Graphics
  • 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
  • 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1
  • Maximum shared memory of 16 GB
Storage

AMD A520 Chipset

  • 4x SATA 6Gb/s ports
  • 1x M.2 slot (Key M) (from AMD Processor)
    - Supports PCIe 3.0
    - Supports SATA 6Gb/s
    - Supports 2242/ 2260/ 2280 storage devices
RAID
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB

AMD A520 Chipset

  • 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

  • 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
AUDIO

Realtek ALC892 Codec

  • 7.1-Channel High Definition Audio
LAN
  • 1x Realtek RTL8111H Gigabit LAN controller
Internal Connectors
  • 1x 24-pin ATX main power connector
  • 1x 4-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 1x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1xTPM module connector
  • 1x Clear CMOS jumper
Back Panel Ports
  • LAN port
  • HDMI
  • DVI-D
  • Keyboard / Mouse
  • USB 3.2 Gen 1 5Gbps Type-A
  • USB 3.2 Gen 1 5Gbps Type-A
  • USB 2.0 Ports
  • Audio Connectors
Dimensions
  • M-ATX Form Factor
  • 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
Mounting
  • 8 mounting holes
Box Content
  • A520M-A Pro
  • Quick Installation Guide
  • MSI Case Badge
  • 2x SATA Cables
  • Product Registration Card
  • I/O Shielding
  • Driver DVD
Form Factor m-ATX
Operating System Support for Windows 10 64-bit

Technické parametry

Pro procesory AMD
Počet paměťových slotů 2
3.5mm Jack Ano
LAN 1Gbit/s
DisplayPort 0
Bezdrátové připojení bez
Led Header Ne
TPM Ano
PCI Express x1 1
USB 2 6
USB 3 6
USB C 0
PCI 0
M.2 slot 1
SATA 3 4
VGA 0
DVI 1
HDMI 1
COM port Ne
LPT port Ne
Socket (patice) Socket AM4
Formát základní desky micro ATX
Chipset AMD A520
Technologie paměti RAM DDR4
PCI Express x16 1
Podpora RAID 0
