| Wireless |
|
| Wireless Standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency |
2.4 - 2.5GHz |
| Signal Rate |
11n: Up to 300Mbps (Dynamic) 11g: Up to 54Mbps (Dynamic) 11b: Up to 11Mbps (Dynamic) |
| Reception Sensitivity |
270M: -70dBm@10% PER 130M: -72dBm@10% PER 54M: -74dBm@10% PER 11M: -87dBm@10% PER 6M: -92dBm@10% PER 1M: -94dBm@10% PER |
| Transmission Power |
<20dBm |
| Wireless Security |
WPA-PSK / WPA2-PSK |
| Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridge |
| Software |
|
| WAN Type |
Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
| Management |
Access control Local management Remote management |
| DHCP |
Server, DHCP Client List |
| Port Forwarding |
Virtual server, UPnP, DMZ |
| Dynamic DNS |
Oray |
| Firewall Security |
IP and MAC address binding |
| Protocols |
IPv4 |
| Guest Network |
2.4GHz guest network |
| Hardware |
|
| Dimensions (W X D X H) |
167 x 118 x 33 mm |
| Interfaces |
3 10/100Mbps LAN ports 1 10/100Mbps WAN port |
| Button |
Reset button |
| External Power Supply |
5VDC/0.6A |
| Antenna Type |
4 x 5dBi fixed omni directional antennas |
| Others |
|
| Certifications |
CE, ROHS |
| Package Contents |

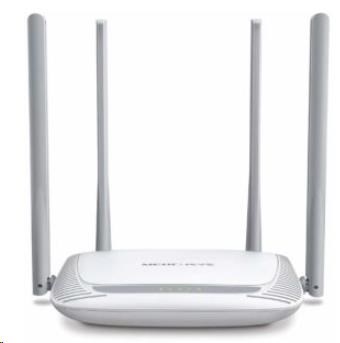

300Mbps Enhanced Wireless N Router MW325R Power adapter Quick installation guide RJ45 Ethernet cable |
| Environment |
Operating temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating humidity: 10% ~ 90%, non-condensing Storage humidity: 5% ~ 90%, non-condensing |
