| Camera |
| Image Sensor | 1/3” Progressive Scan CMOS Sensor |
| Lens | Focal Length: 3.1 mm
Field of View: 114.8±3° (Diagonal), 98±2° (Horizontal), 53.4±2°(Vertical) |
| Night Vision | 2 × 850 nm IR LEDs (32.8 ft / 10 m)
Full-Color Night Vision |
| Lighting | 2 White Lights
App-Controlled |
| Interface & Button | 1× POWER Button
1× RESET Button
1× microSD Card Slot (Up to 512 GB) |
| Video & Audio |
| Maximum Resolution | 2304× 1296 px |
| Frame Rate | 15fps |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3DNR
WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio |
| Siren Volume | 62 dBA (Level measured at 3-meter distance) |
| Software |
| Security | 128-bit AES Encryption with SSL/TLS
WPA/WPA2-PSK/WPA3-SAE |
| Storage |
| Local Storage | microSD Card Slot on Camera (Up to 512 GB) |
| Cloud Storage | MERCUSYS Camera Care Cloud Storage Services (Subscription Required) |
| Network |
| Network Connectivity | Connect via WiFi |
| Wireless Connectivity | IEEE 802.11 a/b/g/n, 2.4 GHz/5 GHz Wi-Fi |
| RTSP | No |
| ONVIF | No |
| Power |
| Power Source | 5200 mAh Built-in Rechargeable Lithium-ion Battery
Solar Panel: MA201C |
| Input Voltage | Adapter Input: 100-240 V, 50/60 Hz(Not include) |
| Output Voltage | Adapter Output: 5.0 V, 1.0 A (Not include)
Solar Panel Max Charging Voltage: 5.2 V
Solar Panel Max Charging Power: 2.5 W |
| General |
| Smart Integration | Google Assistant, Amazon Alexa, Samsung SmartThings |
| Weather Resistance | IP65 |
| Mounting Options | Wall Mounting
Flat Placement |
| Operating Temperature | -20? ~ 45? (-4 ? ~ 113 ? ) |
| Storage Temperature | -20? ~ 60? (-4 ? ~ 140 ? ) |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 0%–90% RH, Non-Condensing |
| Dimensions ( W x D x H ) | 85.15 × 53.31 × 71.65 mm
(3.35 × 2.10 × 2.82 in) |
| Detection & Notifications |
| AI Detection | Motion Detection
Person Detection |
| Activity Zones | Yes |
| Output Notification | System Notification
System Notification with Snapshot (MERCUSYS Camera Care Services) |
| Others |
| Certifications | CE, RCM, KC, NTRA, IP65 |

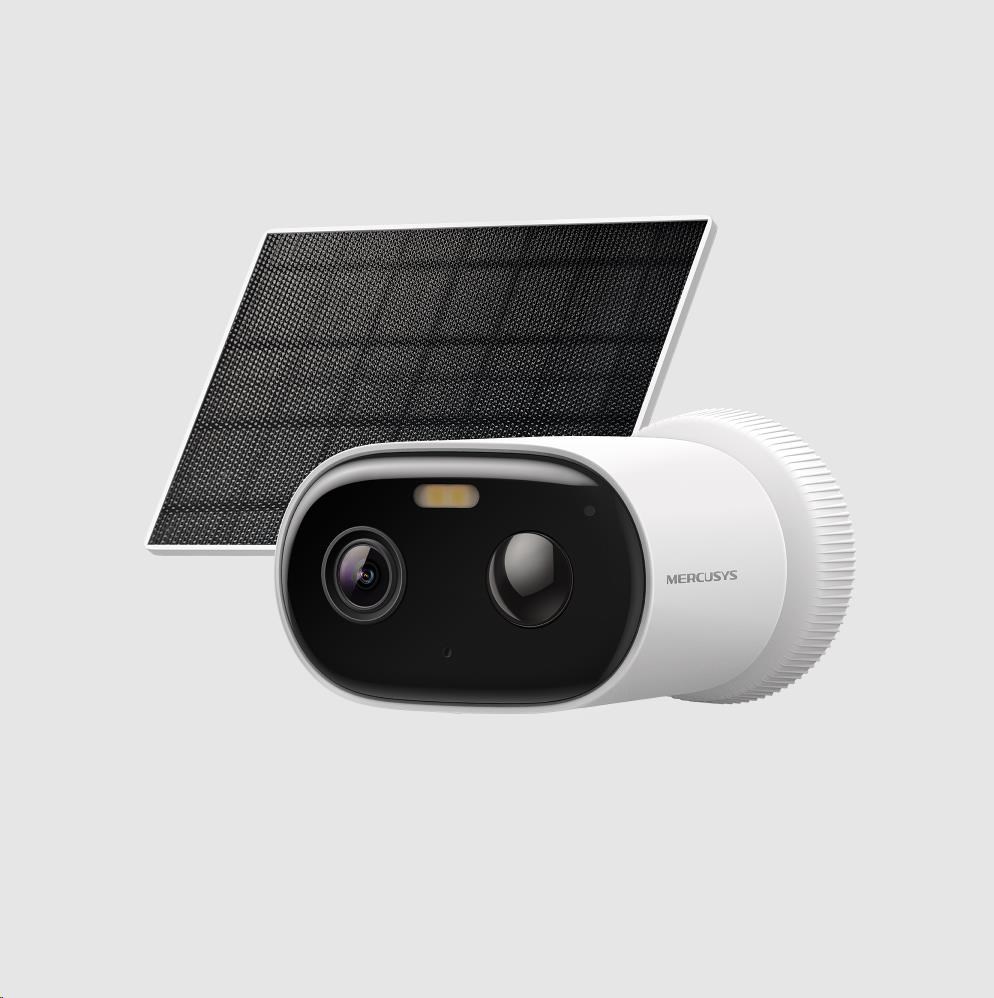

| Package Contents | MC410 Camera × 1
Camera Bracket × 1
Solar Panel × 1
Solar Bracket × 1
USB Adapter Cable × 1
Mounting Screws
Mounting Anchors
Mounting Template Stickers
Quick Start Guide |
