| Wireless |
| Network Type | EU: |
| | FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) |
| | TDD-LTE: B38/B40 (2600/2300 MHz) |
| | HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz) |
| LTE Standard | Cat 4 |
| | 150/50 Mbps DL/UL |
| Wi-Fi Class |
| Wi-Fi (2.4 GHz) | 300 Mbps |
| Wireless Standards | IEEE 802.11b/g/n |
| Frequency | 2.4 GHz |
| Reception Sensitivity | 11b 11 Mbps: -87.5 dBm |
| | 11g 54 Mbps: -74 dBm |
| | 11n HT20 MCS7: -71 dBm |
| | 11n HT40 MCS7: -69 dBm |
| Max Channel Width | 40 MHz |
| MAX Capacity | 32 |
| Recommended Clients Limit | 16 |
| Max Wi-Fi Modulation | MCS7 |
| Wireless Security | WPA-PSK / WPA2-PSK |
| Wireless Functions | Smart connect |
| | WPS |
| | Wireless Schedule |
| | Wireless Clients Statistics |
| Software |
| Operation Modes | 3G/4G Router |
| | Wireless Router |
| Cellular Mode | 4G Preferred |
| | 4G Only |
| | 3G Only |
| Cellular APN | Data Roaming |
| | Network Search |
| | Profile Create |
| | APN Settings |
| | ISP File Upgrade |
| | PIN Management |
| WAN Mode | Dynamic IP |
| | Static IP |
| | PPPoE |
| | PPTP |
| | L2TP |
| DHCP | Server |
| | DHCP Client List |
| | Address Reservation |
| NAT Forwarding | ALG |
| | Virtual Server |
| | Port Triggering |
| | UPnP |
| | DMZ |
| Protocols | IPv4, IPv6 |
| Data Settings | Data Statistics |
| | Data Limit |
| Guest Network | 2.4 GHz Guest Network |
| Parental Controls | Time Control |
| | Website Filtering |
| DDNS | DynDNS |
| | NO-IP |
| VPN Sever | OpenVPN |
| | PPTP VPN |
| | L2TP VPN |
| SMS | Inbox |
| | New Message |
| | Outbox |
| | Drafts |
| Security | IPv4 SPI Firewall |
| | Access Control |
| | Service Filtering |
| | IP & MAC Binding |
| | IPv6 Firewall |
| ISP Feature | TR-069 |
| System | Time Settings |
| | LED Control |
| | Diagnostics |
| | Firmware Upgrade |
| | Backup&Restore |
| | Reboot |
| | Administration |
| | System Log |
| | CWMP Settings |
| LED Management | LED Control |
| | Night Mode |
| Device Management | MERCUSYS APP |
| | Web GUI |
| Cloud | Firmware Upgrade over the Cloud |
| | Remote Management |
| Language | English |
| | Spanish |
| | Italian |
| | Polish |
| | Russian |
| Hardware |
| Dimensions (W X D X H) | 108 × 86.8 × 34 mm |
| | (4.3 × 3.4 × 1.3 in) |
| Interfaces | 1× 100 Mbps LAN/WAN Port |
| | 1× 100 Mbps LAN Port |
| | 1× Nano SIM Card Slot |
| Antenna | 2 External Non-detachable 4G LTE Antennas |
| | 2 Internal Wi-Fi Antennas |
| Button | 1×WPS/Wi-Fi Button |
| | 1×Reset Button |
| Retail Package Weight | 0.35 kg |
| Installation | Desktop |
| LED | 1× Power |
| | 1× Internet |
| | 1× LAN |
| | 3× Signal |
| Retail Package Dimension | 192 × 148 × 58 |
| Units per Carton | 32 |
| Carton Dimension | 480 × 400 × 320 |
| Power Consumption | USB-C: 5V/1.5A |
| Others |
| Certifications | CE |
| Network Services Enabled by Default | Web Server |
| | Manage and configure device through web (HTTP/HTTPS) |
| | • Port: 80/443 Protocol: TCP |
| | DHCP Server |
| | IP address assignment (DHCP) |
| | • Port: 67 Protocol: UDP |
| | CWMP |
| | CWMP |
| | • Port: 7547 Protocol: TCP |
| | App management |
| | Manage and configure device through app |
| | • Port: 20001 Protocol: TCP |
| | • Port: 20002 Protocol: UDP |

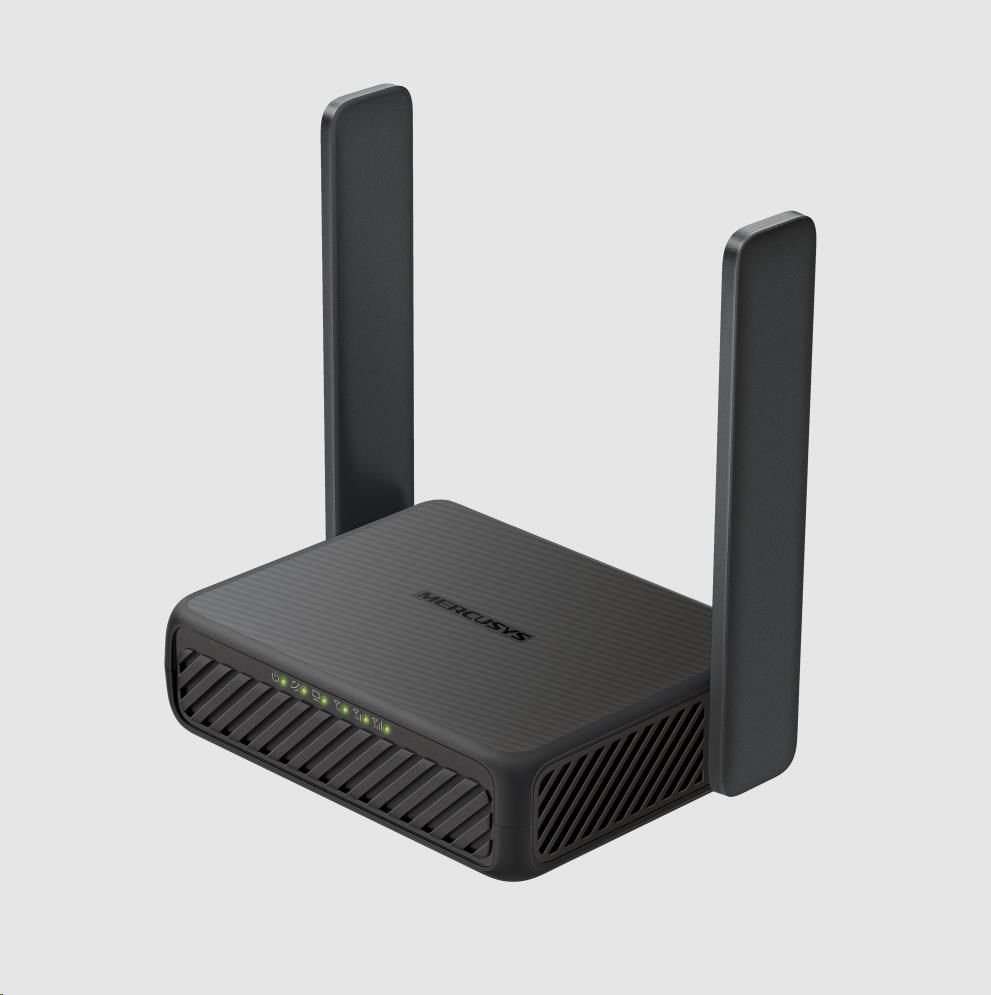

| | 300 Mbps Wireless 4G LTE Router (MB113-4G) |
| | Power Adapter |
| | RJ45 Ethernet Cable |
| | Quick Installation Guide |
| | Operating Temperature: 0 °C~40 °C (32 °F~104 °F) |
| | Storage Temperature: -40 °C~60 °C (-40 °F~140 °F) |
| | Operating Humidity: 10%~90% Non-Condensing |
| | Storage Humidity: 5%~90% Non-Condensing |
