| Standards and Certifications |
CE RoHS FCC UKCA |
| DC Input |
24.0 V / 1.0 A |
| Charging distance |
15 - 30 mm (0.6 - 1.2 in.) |
| Misalignment tolerance |
20 mm (0.8 in.) |
| Charging efficiency |
? 75% |
| Wattage settings (maximum) |
- 5.0 W / 7.5 W / 10.0 W |
| Stand-by power consumption |
|
| Protection Characteristics |
Short-circuit (SCP) with auto-recovery mode Overvoltage (OVP) with auto-recovery mode Overcurrent (OCP) — current limit: 150% (max) Over-temperature (OTP) Foreign Object Detection (FOD) |
| Compatibility |
10 W fast-charge mode: - All Qi-enabled devices including Google Pixel and Nexus, phones from Samsung, Huawei, Asus, Sony and more 7.5 W fast-charge mode: - Apple iPhone 8 / 8 Plus / X / XR / XS / XS Max / 11 / 11 Pro / 11 Pro Max / 12 mini / 12 / 12 Pro / 12 Pro Max or above |
| Dimensions (L x W x H) |
106 x 106 x 20 mm (7.48 x 7.48 x 0.79 in.) |
| Weight |
190 g (6.7 oz.) |
| Housing |
ABS plastic |
| Operating Environment |
Operation temperature: 0 - 40°C (32 - 104°F) Storage temperature: -20 - 65°C (-4 - 149°F) Humidity (noncondensing): 10 - 90% |
| Package Contents |

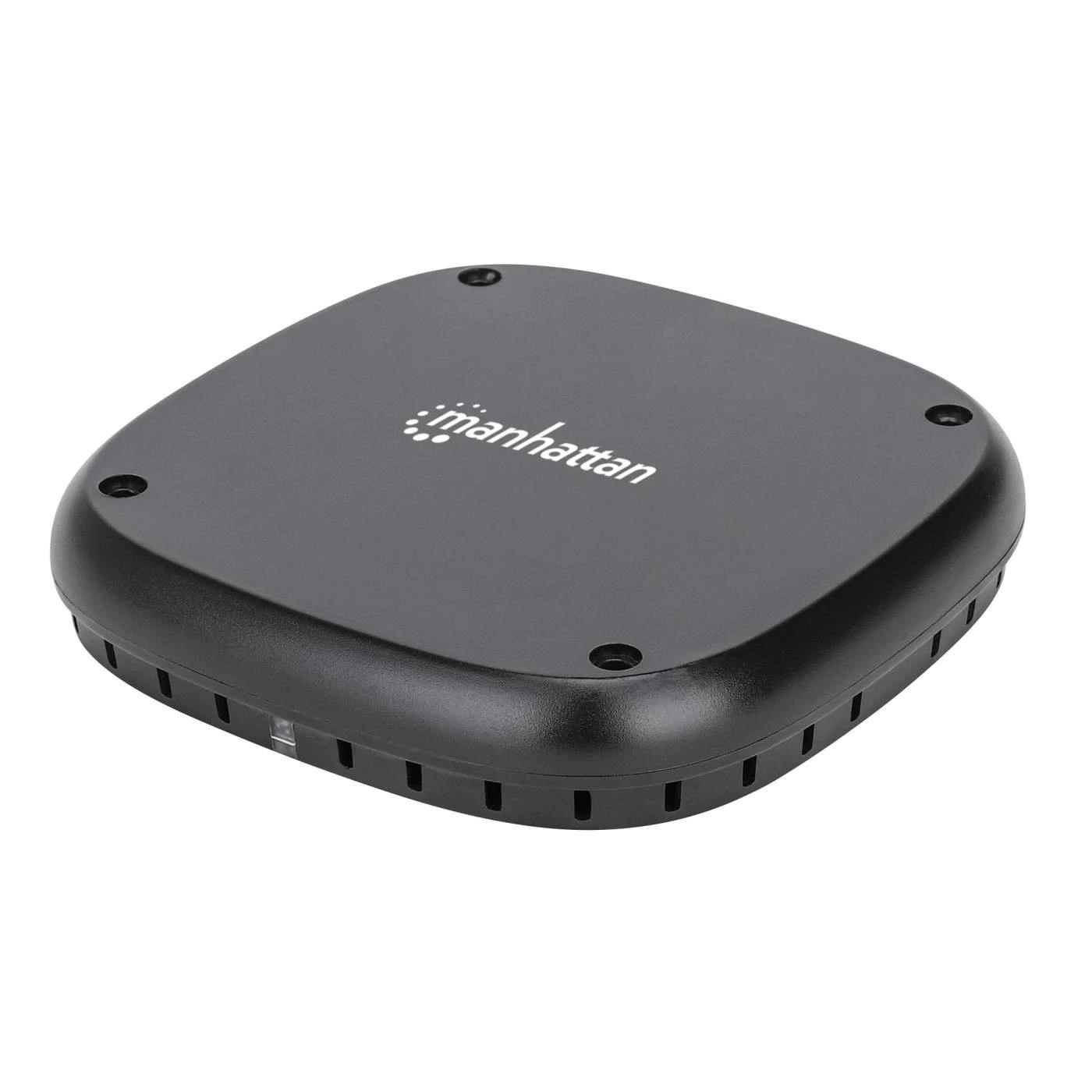

Under-Desk Fast Wireless Charger - 10 W 3M adhesive tape Four mounting screws Coil sticker DC power adapter, 24 V / 1 A, 1.2 m (4 ft.) cable Quick Instruction Guide |
