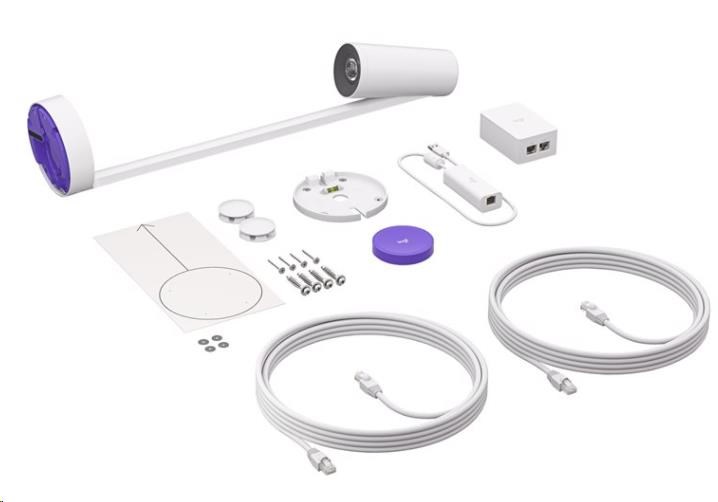

Logitech Scribe

Camera

• Height: 149 mm
• Width: 119 mm
• Depth: 573 mm
• Weight: 1.1 kg

Share Button

• Height: 12.7 mm
• Diameter: 71.8 mm
• Weight: 108 g

Power Injector

• Height: 91 mm
• Width: 60.2 mm
• Depth: 36.3 mm

Dongle Transceiver

• Height: 22.5 mm
• Width: 31 mm
• Depth: 83.7 mm
• Cable length: 500 mm

Included Cabling (x2)

• Length: 5 m

Whiteboard

• Maximum Whiteboard Dimensions
  • Height: 1.2 m
  • Width: 2 m

Customer-Supplied Cabling

• Cable Type: Cat5e or higher [up to 35 meters in total length]

Certifications & Compatibility

• Integrates with Microsoft Teams Rooms on Windows and Zoom Rooms (Windows or macOS) as a whiteboard content camera.
• See www.logitech.com/support/scribe-compatibility for pending and granted certifications and compatibility updates.
• Compatible with virtually any video conferencing application as a USB-connected camera.

Camera

• Output Resolution: 1080p at 15 fps
• Built-In AI: Broadcasts AI-enhanced image stream into video meetings

Share Button

• Power: 2 x CR2032 battery
• Adhesive-backed mounting
• Share button support may vary by video conferencing service provider.
• See www.logitech.com/support/scribe-compatibility for latest information.

Interfaces

• Camera: Category Cable Port
• Share Button: Bluetooth Low Energy

Power & Cables

• Power supply: 100-240V auto-switching power supply with international adaptor set
• Cable Type: Cat5e SF/UTP AWG26 or higher

Environmental

• Operating Temperature: 0-40°C
• Storage Temperature: -40-70°C
• Humidity: 10-95%

Security

• Full Disk Encryption: AES-128

Device Management

• Logitech Sync

• Camera
• Share Button
• Dongle Transceiver
• 100-240v Power Supply with International Adaptor Set
• 5.0 m Cat5e Cables x 2
• Camera Installation Kit
• Documentation

• 960-001332
