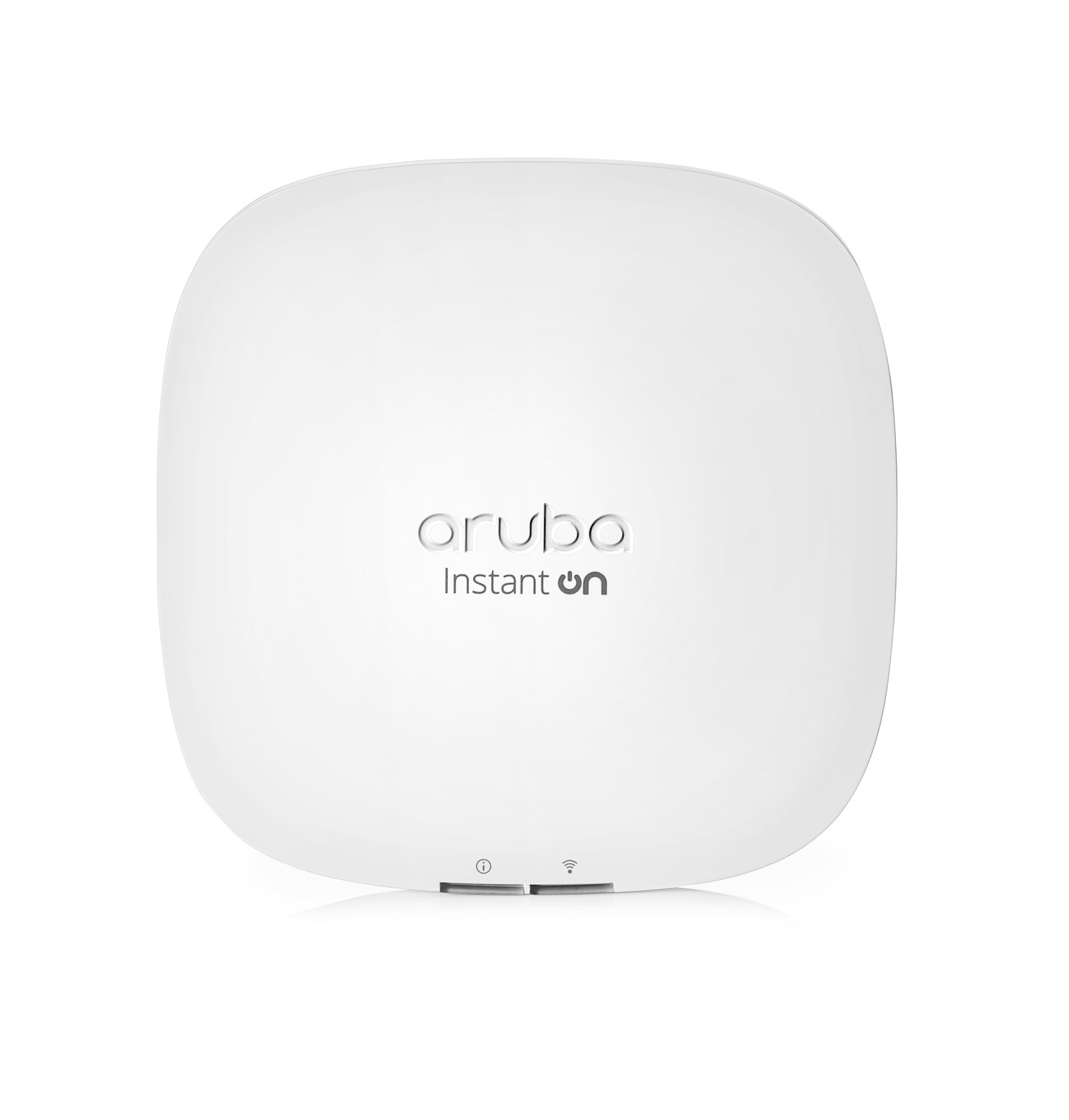

HPE Networking Instant On Access Point Bundle with PSU Dual Radio Tri Band 2x2 Wi-Fi 6E (EU) AP32 ( S1T28A )

HPE Networking Instant On Access Point Bundle with PSU Dual Radio Tri Band 2x2 Wi-Fi 6E (EU) AP32
Product Number: S1T28A

What's New

• Wi-Fi CERTIFIED 6E™ support for up to 75 user devices.

• 2.5 Gigabit Ethernet uplink port to reduce application bottlenecks.

• 6 GHz band dedicated to Wi-Fi 6E-enabled devices with up to 2.4 Gbps wireless throughput.

• Minimal, modern design to blend into any environment.

Overview The HPE Networking Instant On AP32 is a Wi-Fi CERTIFIED 6E™ wireless access point for small and medium businesses. It supports the 6 GHz band reserved for Wi-Fi 6E devices, offering higher capacity and performance. The AP32 includes a 2.5 GbE uplink port and PoE for efficient connectivity and power.

With a 2x2 antenna array supporting 2 spatial streams, it delivers up to 2.8 Gbps of wireless throughput and supports up to 75 client devices. Administrators can select between 5 GHz/6 GHz for high-speed access or 2.4 GHz/6 GHz for extended range, using the HPE Networking Instant On mobile app.

Quiet mode can disable LED lights for distraction-free operation. The device is cloud-connected for remote management via mobile app or web portal.

Key Features

• Wi-Fi 6E (802.11ax) with OFDMA for improved capacity, reduced latency.

• Target Wake Time (TWT) to optimize battery life in IoT devices.

• 2x2 MIMO allows simultaneous servicing of multiple Wi-Fi 5/6 clients.

• Top-tier security with WPA2/WPA3 and Enhanced Open.

• Application insight and traffic blocking available in the management app.

Flexible Band Configurations

• 6 GHz and 5 GHz: for maximum throughput.

• 6 GHz and 2.4 GHz: for new devices and legacy IoT.

• 5 GHz and 2.4 GHz: for non-6E networks.

Technical Specifications

• Product Number: S1T28A

• Regulatory Domain: EU

• In the Box:

  • HPE Networking Instant On Access Point

  • Quick Start Guide

  • Ceiling/Wall mount clip

  • DC Power Adapter (EU mainland compatible)

  • Ethernet cable

• Certifications:

  • Wi-Fi Alliance Certified (WFA)

  • 802.11ax (Wi-Fi 6)

  • WPA2, WPA3 security

• Input Voltage:

  • PoE: 802.3at (Class 4)

  • DC Power: 12V

  • Note: Power sources sold separately unless purchasing the bundle SKU.

• Wi-Fi Antenna:

  • Dual omni-directional 2x2 MIMO

  • Antenna Gain:

    • 2.8 dBi (2.4 GHz)

    • 4.5 dBi (5 GHz & 6 GHz)

  • Max Transmit Power:

    • +21 dBm @ 2.4 GHz / 5 GHz / 6 GHz (+18 dBm per chain, 3 dB MIMO gain)

• Connectivity & Ports:

  • 1x 2.5 GbE Base-T uplink

  • DC power connector

  • LED status indicators

  • Reset/LED control button

  • Kensington security slot

• Mounting: Ceiling or wall mount (clip included)

• Power Consumption:

  • Max 12.9W (PoE)

  • Max 11.0W (DC)

• Radio Coverage:

  • Dual-radio, tri-band 802.11ax 2x2 MIMO (6 GHz / 5 GHz / 2.4 GHz)

  • Note: Only two active bands are selectable.

• Warranty & Support:

  • 2-year warranty

  • 24/7 phone support (first 90 days)

  • Chat support for the entire warranty period

  • Community support for the lifetime of the product
