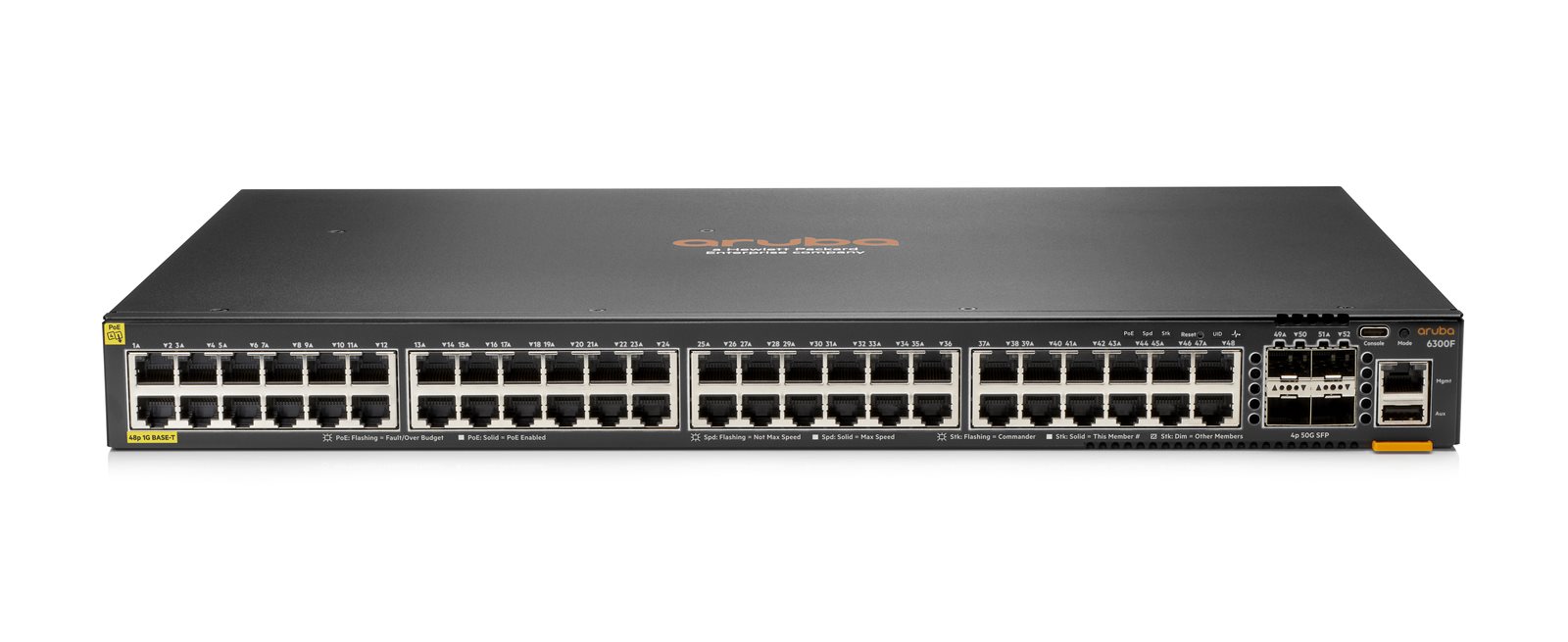

HPE Aruba Networking CX 6300F 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch JL665A RENEW

Aruba 6300F 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch (JL665A)

Description

48x ports 10/100/1000 BaseT PoE+ ports supporting up to 30W per port
1G/10G/25G/50G¹ SFP ports
Supports PoE Standards IEEE 802.3af, 802.3at
1x USB-C Console Port
1x OOBM port
1x USB Type A Host port
1x Bluetooth dongle to be used with CX Mobile App

Notes: ¹50G capability is for use with 50G DACs for both interconnect and VSF stacking. 50G SR transceivers have been added with a minimum software of 10.09.1010. VSF stacking not supported on 1G ports.

Power Supplies

Internal (fixed) power supply (950W). Max PoE power: 740W

Fan Tray

Fixed fans

Physical Characteristics

Dimensions

17.4 (w) x 12.9 (d) x 1.73 (h) in (44.2 cm x 32.7 x 4.39 cm))

Weight

11.24 lbs (5.10 kg)

Mounting And Enclosure

Mounts in an EIA- standard 19 in. telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included.

CPU

Quad Core ARM Cortex^TM A72 @ 1.8GHz

Memory And Flash

8 GBytes DDR4 32 GBytes eMMC

Packet Buffer

8 MB packet buffer memory

Performance

System switching capacity

880 Gbps

System throughput capacity

660 Mpps

Model switching capacity

496 Gbps

Model throughput capacity

369 Mpps

Average latency

(LIFO, 64-byte packets)

1Gbps: 2.28µSec

10Gbps: 1.46µSec

25Gbps: 1.90µSec

50Gbps: 3.49µSec

Stack size

10 members

Max stacking distance

Up to 10 kms with long range transceivers

Stacking bandwidth

200 Gbps (400 Gbps at full duplex)

Switched virtual interfaces (dual stack)

1,024

IPv4 host table (ARP)

49,152

IPv6 host table (ND)

49,152

IPv4 unicast routes

61,000

IPv6 unicast routes

61,000

IPv4 multicast routes

8,192

IPv6 multicast routes

8,192

MAC table capacity

32,768

IGMP groups

8,192

MLD groups

8,192

IPv4/IPv6/MAC ACL entries (ingress)

20,480/5,120/20,480

IPv4/IPv6/MAC ACL entries (engress)

8,192/2,048/8,192

VRF

256

Environment

Operating temperature

32°F to 113°F (0°C to 45°C), up to 5,000 feet

32°F to 104°F (0°C to 40°C), 5,001 to 10,000 feet

1°C de-rating per 1,000 feet above 5,000 feet

Can support excursion to 131°F (55°C) for short periods¹ of time.

Operating

15% to 95% relative humidity at 104°F (40°C), non-condensing

Non-operating temperature

40°F to 158°F ('-40°C to 70°C)

Non-operating humidity

15% to 95% relative humidity at 149°F(65°C), non-condensing

Max operating altitude

Up to 10,000ft (3.048 Km)

Max non-operating altitude

Up to 15,000ft (3.048 Km)

Acoustic

Sound power,

LWAd = 5.2 Bel

Sound pressure,

LpAm (bystander) = 34.9 dB

Primary airflow

Front and side-to-back

Electrical Characteristics

Frequency

50-60 Hz

AC voltage

Fixed PSU: 100V-120V/200V-240V

Current

(for voltages listed above)

Fixed PSU: 11A/6A

Power Consumption

(230VAC)

Hibernation (0 rpm fan): 12W

Idle: 63W

100% traffic rate: 86W

Safety

Europe: EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011 + A2:2013

US: UL 60950-1 2nd Ed..

Canada: CAN/CSA-C22.2 No. 60950-1-07

Worldwide: IEC 60950-1:2005 w/all known National Deviations

Emissions

Europe: EN 55022:2010, Class A EN 55032:2012, Class A EN 55024:2010, EN 61000-3-2:2014

EN 61000-3-3:2013

US: FCC part 15 Class A

Canada: ICES-003 Class A

Worldwide: VCCI Class A, CISPR 22 Class A CISPR 32 Class A CISPR 24:2010

Lasers

EN 60825-1:2007 / IEC 60825-1:2007 Class 1

Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only)

Immunity

Generic

CISPR 24 / CISPR 35

EN

EN 55024:2010 / EN 55035:2017

ESD

IEC 61000-4-2

Radiated

IEC 61000-4-3

EFT/Burst

IEC 61000-4-4

Surge

IEC 61000-4-5

Conducted

IEC 61000-4-6

Power frequency magnetic field

IEC 61000-4-8

Voltage dips and interruptions

IEC 61000-4-11

Harmonics

IEC 61000-3-2, EN 61000-3-2

Flicker

IEC 61000-3-3, EN 61000-3-3

Notes: ¹ Not more than 96 consecutive hours or 360 hours total or 15 occurrences in a 1-year period.
