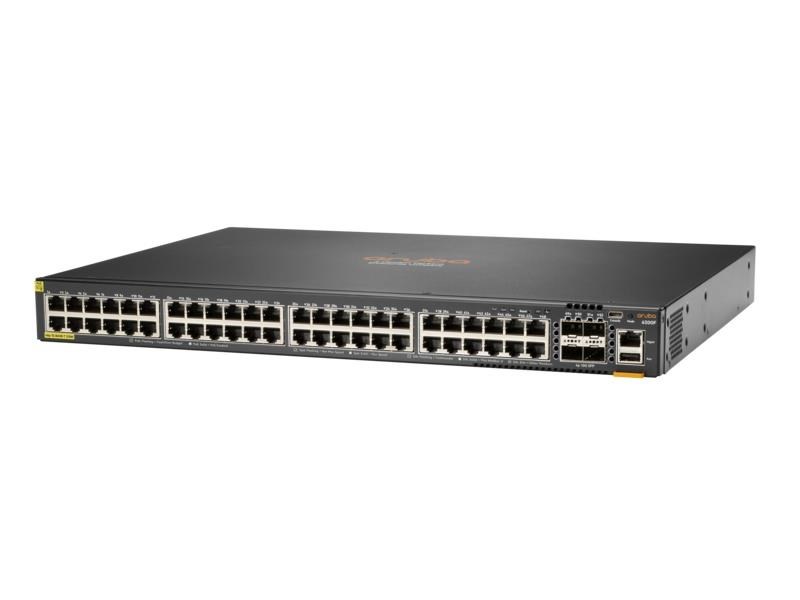

HPE Aruba Networking CX 6200F 48G 4SFP+ Switch JL726AR RENEW

HPE Aruba Networking CX 6200F 48G 4SFP+ Switch (JL726A)

Description

48x ports 10/100/1000BASE-T Ports

4x 1/10G SFP ports

1x USB-C Console Port

1x OOBM

1x USB Type-A Host port

1x Bluetooth Adapter to be used with HPE Aruba Networking CX Mobile App

Power supplies

Fixed power supply

Fans

Fixed fans

Physical characteristics

Dimensions

(H) 4.39 cm x

(W) 44.2 cm x

(D) 32.7 cm

(1.73"" x 17.4"" x 12.9"")

Weight

4.45 kg (9.81 lbs)

CPU

Quad Core ARM Cortex^TM A72 @ 1.8 GHz

Memory and Flash

8 GB DDR4

16 GB eMMC

Packet buffer

8 MB packet buffer memory

Performance

Model switching capacity

176 Gbps

Model throughput capacity

Up to 130.9 Mpps

Average latency (LIFO-64-bytes packets)

1 Gbps: 2.28 µSec

10 Gbps: 1.46 µSec

Stack size

8 members using 10G SFP ports

Max. stacking distance

Up to 10 kms with long range transceivers

Switched virtual interfaces (dual stack)

128

IPv4 host table (ARP)

8,192

IPv6 host table (ND)

8,192

IPv4 unicast routes

2,048

IPv6 unicast routes

1,024

MAC table capacity

32,768

IGMP groups

1,024

MLD groups

1,024

IPv4/IPv6/MAC ACL entries (ingress)

5,120/1280/5,120

IPv4/IPv6/MAC ACL entries (egress)

2,048/512/2,048

Environment

Operating temperature

32°F to 113°F (0°C to 45°C) up to 5,000 ft; derate -1°C for every 1,000 ft from 5,000 to 10,000 ft

Operating relative humidity

15% to 95% @ 104°F (40°C) non-condensing

Non-operating temperature

-40°F to 158°F (-40°C to 70°C) up to 15,000 ft

Non-operating relative humidity

15% to 90% @ 149°F (65°C) non-condensing

Max operating altitude

Up to 10,000ft (3.048 Km)

Max non-operating altitude

15,000 feet (4.6 km) max

Acoustics

Sound power, LWAd = 4.9 Bel

Sound pressure, LpAm (bystander) = 33.0 dB

Primary airflow

Front and side-to-back

Electrical characteristics

Frequency

50Hz/60Hz

AC voltage

100-120V/200-240V

Current

2.5A/1.4A

80plus.org certification

80 PLUS Silver

Power consumption (230 VAC)

Hibernation (0 rpm fan): 7W

Idle: 55W

100% traffic rate: 68W

Safety

Europe:

EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011 + A2:2013

EN 62368-1:2014 +A11:2017

US:

UL 60950-1 2nd Ed.

Canada:

CAN/CSA-C22.2 No. 60950-1-07

Worldwide:

IEC 60950-1:2005 w/all known National Deviations

IEC 62368-1:2014 2nd Ed.

Taiwan:

CNS-14336-1

Emissions

Europe:

EN 55032:2015 +AC:2016, Class A

EN 55024:2010

EN 55035:2017

EN 61000-3-2:2014

EN 61000-3-3:2013

US:

FCC 47 CFR part 15B, Class A

Canada:

ICES-003 Class A

Worldwide:

VCCI Class A

CISPR 32 Ed 2.0: 2015 + COR1:2016, Class A

CISPR 24:2010

CISPR 35:2016

Lasers

EN 60825-1:2007 / IEC 60825-1:2007 Class 1

Class 1 Laser Products / Laser Klasse 1

(Applicable for accessories - Optical Transceivers only)

Immunity

Generic

CISPR 35: 2016

EN

EN 55035:2017 / A11:2020

ESD

EN 61000-4-2

Radiated

EN 61000-4-3

EFT/Burst

EN 61000-4-4

Surge

EN 61000-4-5

Conducted

EN 61000-4-6

Power frequency magnetic field

IEC 61000-4-8

Voltage dips and interruptions

EN 61000-4-11

Harmonics

EN 61000-3-2, IEC 61000-3-2

Flicker

EN 61000-3-3, IEC 61000-3-3

RoHS

EN 63000:2018 / IEC 63000:2018

Mounting and Enclosure

Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet.

Horizontal surface mounting only.

2-post rack kit included.
