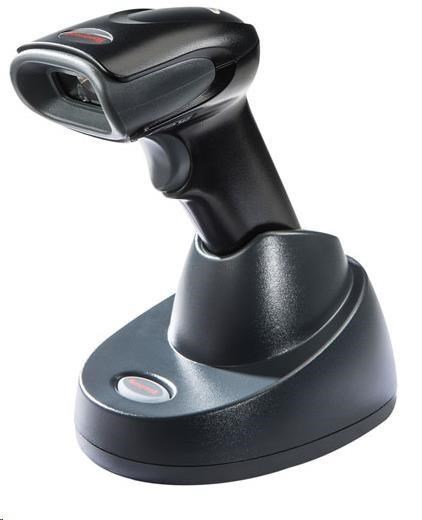

Honeywell Voyager Extreme Performance 1472g, BT, 2D, BT, kit (USB), black

Bluetooth scanner, 2D, imager, Bluetooth, IP40, incl.: cable (USB, straight, 3 m, black), charging/transmitter cradle, colour: black

The Honeywell Voyager Extreme Performance (XP) 1472g is a reliable 2D scanner for retail. It is designed to read difficult-to-capture 1D and 2D barcodes, as well as DotCodes and digital vouchers from a smartphone or tablet – even if the barcodes are damaged or difficult to read. Together with the increased flexibility, due to its wireless design, it simplifies work and helps save time.

The multi-interfaces of the Voyager XP 1472g always ensure good performance and include USB, keyboard wedge (KBW), RS232 and RS485 with support for IBM 46XX. It is also robust: it withstands multiple falls from heights of up to 1.8 meters and is protected against the penetration of foreign bodies up to 1 mm and diagonally falling dripping water according to IP42 certification. Plus, the Voyager XP 1472g is fully backwards compatible with existing accessories. There are no additional costs for optional accessories and the total cost of ownership is lower.

WIRELESS
Radio/Range: 2.4 GHz to 2.5 GHz
(ISM Band)
Adaptive Frequency Hopping
Bluetooth v4.2
30 m (98 ft) line of sight with Honeywell
charger/communication base
Power Options:
Battery: 2400 mAh Li-ion minimum
Number of Scans: Up to 50,000
scans per charge
Expected Duration of Operation:
14 hours
Expected Charge Time: 4.5 hours
User Indicators: Good Decode LEDs, Rear
View LEDs, Beeper (adjustable tone and
volume), Vibration (adjustable), Charge
Status Indicator

MECHANICAL/ELECTRICAL
Dimensions (L x W x H): 62 mm x 173 mm x
82 mm (2.5 in x 6.8 in x 3.2 in)
Charger/Communication Base: (CCB01-
010BT-V1N) 132 mm x 102 mm x 81 mm
(5.2 in x 4.0 in x 3.2 in)
Scanner Weight: 210 g (7.4 oz)
Charger/Communication Base: 179 g
(6.3 oz)
Operating Power (Charging): Charger/
Communication Base: 179 g (6.3 oz)
Standby Power: Charger/Communication
Base: 0.5 W (0.1A @ 5V)
Host System Interfaces: USB, Keyboard
Wedge, RS-232, RS485 support for IBM
46xx (RS485)

ENVIRONMENTAL
Operating Temperature:
Scanner:
Charging: 5°C to 40°C (41°F to 104°F)
Non-Charging: 0°C to 50°C
(23°F to 122°F)
Charger/Communication Base:
Charging: 5°C to 40°C (41°F to 104°F)
Non-Charging: 0°C to 50°C
(32°F to 122°F)
Storage Temperature:
Scanner:
For storage up to 90 days: -20°C to
35°C (-4°F to 95°F)
For storage up to 1 year: -20°C to 20°C
(-4°F to 68°F)
Charger/Communication Base: -40°C to
70°C (-40°F to 158°F)
Electrostatic Discharge (ESD) (Scanners
and Cradles): ±8 kV indirect coupling plane,
±15 kV direct air
Humidity: 0% to 95% relative humidity,
non-condensing
Tumble Spec: 1,000 0.5 m (1.6 ft)
tumbles (impacts)
Drop: Engineered to withstand 30 1.8 m
(6 ft) drops to concrete
Environmental Sealing: IP42
Light Levels: 0 to 100,000 lux
(9,290 foot-candles)

SCAN PERFORMANCE
Scan Pattern: Area Image
(1040 x 720 pixel array)
Motion Tolerance: 70 cm/s (27.6 in/s) for
13 mil UPC at optimal focus
Scan Angle:
Horizontal: 39.2° nominal
Vertical: 27.4° nominal
Roll, Pitch, Skew: ±180°, ±65°, ±70°
Barcode Types: Reads standard 1D, PDF,
2D, and DotCode symbologies
Note: Decode capabilities dependent on
configuration.
