Výkon zdroje (W):750; Formát zdroje:ATX; Konektory:8pin CPU 1x, 8pin CPU 2x, PCIe 6-pin, PCIe 8-pin, SATA 15-pin; Konektory pro základní desku:ATX 20-pin, ATX 24-pin, EPS 8-pin; Modulární kabeláž; Efektivita zdroje:80 Plus Gold; Vlastnosti zdroje:Modulární kabeláž; Podsvícení:Bez podsvícení

Vaše cena: 2 595,00 Kč

Košík:

ks
Koupit
Dostupnost: 8,00

Informace o ceně

Vaše cena bez SNC:
2 595,00 Kč
  • SNC:
    4,00 Kč
  • Vaše cena celkem:
    2 595,00 Kč
Kód:
1208158
P/N:
FD-P-IA2G-750-EU
Záruka:
7 Rok(ů)
Výrobce:
Fractal Design
Zástupce v EU:
Tisk produktové nabídky Porovnat produkt

Podrobnosti

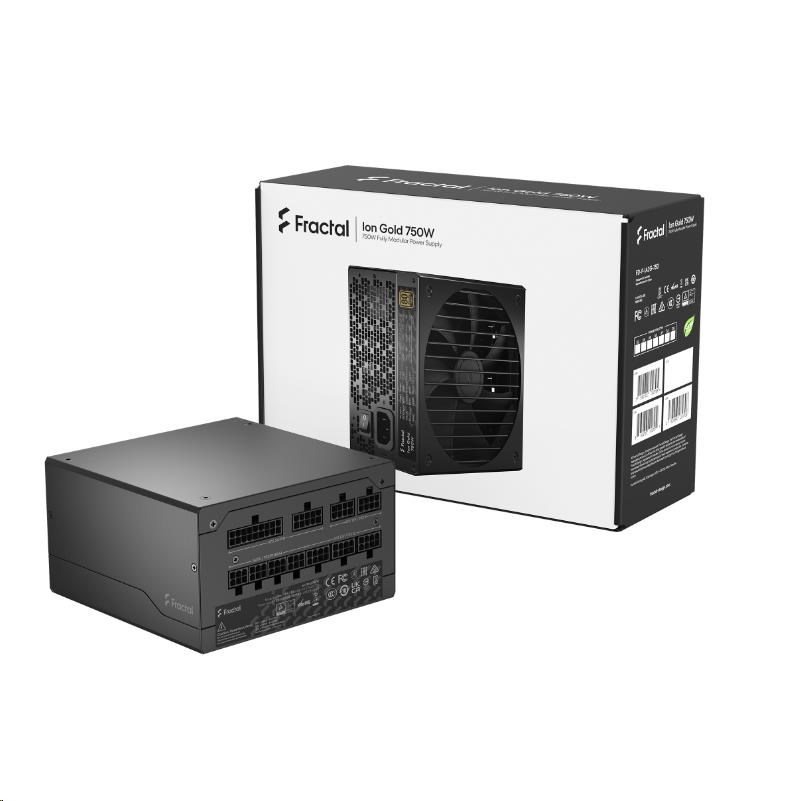

Ion Gold 750W

The Ion Gold ATX is a high-performance power supply, featuring great electrical performance, quiet operation and a big 140 mm Dynamic series fan. Tailored specifically for anyone looking for a high-quality power supply at a competitive price, the Ion Gold comes packed with capability.

  • 80PLUS Gold Efficiency rating for reduced noise and energy consumption
  • Premium Japanese 105°C capacitor(s) on the primary side for superior reliability and durability
  • Fully modular design for reduced clutter and maximum ease of installation

TECHNICAL SPECIFICATIONS

80PLUS certification Gold
Modular cables Fully Modular
Fan type 140 mm LLS bearing Fractal Design Dynamic series fan
Maximum operating temperature (full load) 40°C, 50°C at 80% load
Semi-passive operation No
Capacitors Primary side: Japanese 105° main bulk capacitor(s), Secondary side: Taiwanese 105°C electrolytic & solid-state capacitors
Life expectancy 100,000 hours
Cable type Modular 24-pin cable: Black wires in braided sleeve, Other modular cables: Flat black wires
Input voltage 100-240V AC
Input frequency 50-60 Hz
Input current 10A/5A
Protection features Over voltage protection, Under voltage protection, Over-power protection, Short circuit protection, Over current protection, Over temperature protection
PSU specification compliance ATX12V 2.52; EPS12V 2.92
PSU color Black
Sleep state compliance C6/C7 compatible
Approvals & certifications CE, FCC, KCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
Warranty 7 years
Connectors
ATX 24-pin 1
EPS/ATX12V 2
PCIe 4
SATA 8
Peripheral 3
DC Output
3.3V 22A
5V 22A
3.3V and 5V combined 120W
12V 62.5A
-12V 0.3A
+5Vsb 3A
Total Power 750W
Cable Configuration (length in mm between connectors)
ATX 24-pin 500
ATX 12V 4+4 pin 600
EPS12V 8-pin 600
PCIe 6+2 pin 550+150
SATA 500+150+150+150
Peripheral 500+150+150

Technické parametry

Efektivita zdroje 80 Plus Gold
Modulární kabeláž Ano
Podsvícení Bez podsvícení
Výkon zdroje (W) 750
Formát zdroje ATX
Konektory PCIe 6-pin
Konektory pro základní desku ATX 20-pin
Vlastnosti zdroje Modulární kabeláž
