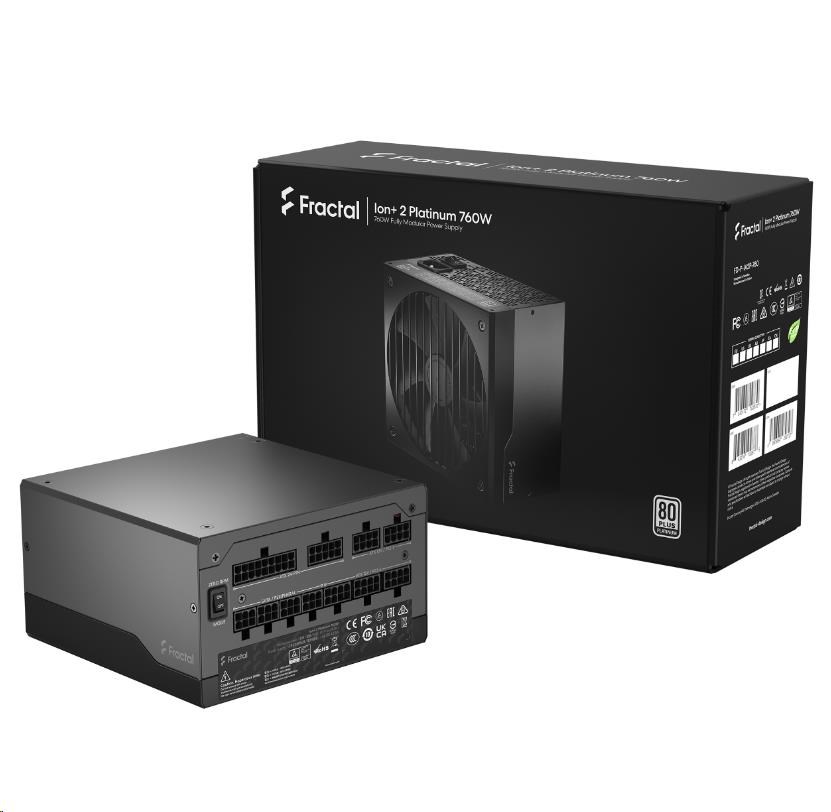

FRACTAL DESIGN zdroj Ion+ 2 760W PLATINUM, modular, 80+ Platinum

FRACTAL DESIGN zdroj Ion+ 2 760W PLATINUM, modular, 80+ Platinum
FRACTAL DESIGN zdroj Ion+ 2 760W PLATINUM, modular, 80+ Platinum
FRACTAL DESIGN zdroj Ion+ 2 760W PLATINUM, modular, 80+ Platinum
FRACTAL DESIGN zdroj Ion+ 2 760W PLATINUM, modular, 80+ Platinum
FRACTAL DESIGN zdroj Ion+ 2 760W PLATINUM, modular, 80+ Platinum
FRACTAL DESIGN zdroj Ion+ 2 760W PLATINUM, modular, 80+ Platinum
FRACTAL DESIGN zdroj Ion+ 2 760W PLATINUM, modular, 80+ Platinum
FRACTAL DESIGN zdroj Ion+ 2 760W PLATINUM, modular, 80+ Platinum
FRACTAL DESIGN zdroj Ion+ 2 760W PLATINUM, modular, 80+ Platinum
FRACTAL DESIGN zdroj Ion+ 2 760W PLATINUM, modular, 80+ Platinum
FRACTAL DESIGN zdroj Ion+ 2 760W PLATINUM, modular, 80+ Platinum
FRACTAL DESIGN zdroj Ion+ 2 760W PLATINUM, modular, 80+ Platinum
FRACTAL DESIGN zdroj Ion+ 2 760W PLATINUM, modular, 80+ Platinum
FRACTAL DESIGN zdroj Ion+ 2 760W PLATINUM, modular, 80+ Platinum
FRACTAL DESIGN zdroj Ion+ 2 760W PLATINUM, modular, 80+ Platinum
FRACTAL DESIGN zdroj Ion+ 2 760W PLATINUM, modular, 80+ Platinum

Výkon zdroje (W):760; Formát zdroje:ATX; Konektory:8pin CPU 1x, 8pin CPU 2x, PCIe 6-pin, PCIe 8-pin, SATA 15-pin; Konektory pro základní desku:ATX 20-pin, ATX 24-pin, EPS 8-pin; Modulární kabeláž; Efektivita zdroje:80 Plus Platinum; Vlastnosti zdroje:Modulární kabeláž; Podsvícení:Bez podsvícení

Vaše cena: 3 020,00 Kč

Košík:

ks
Koupit
Dostupnost: 12,00

Informace o ceně

Vaše cena bez SNC:
3 020,00 Kč
  • SNC:
    4,00 Kč
  • Vaše cena celkem:
    3 020,00 Kč
Kód:
1208165
P/N:
FD-P-IA2P-760
Záruka:
10 Rok(ů)
Výrobce:
Fractal Design
Zástupce v EU:
Tisk produktové nabídky Porovnat produkt

Podrobnosti

Ion+ 2 Platinum 760W

The Ion+ 2 Platinum is a high-performance fully modular PSU with whisper-quiet operation, enhanced cable flexibility and superior output quality.

  • 80PLUS Platinum efficiency for optimized electricity use and reduced heat generation
  • Great electrical output quality with tight voltage regulation and low ripple and noise
  • Fully modular design for reduced clutter and maximum ease of installation and with Fractal Design UltraFlex™ (extra bendable soft cables) for better cable management

TECHNICAL SPECIFICATIONS

80PLUS certification Platinum
Modular cables Fully Modular
Fan type 140 mm FDB bearing Fractal Design Dynamic series fan
Maximum operating temperature (full load) 50°C
Semi-passive operation Yes, user selectable (Zero RPM)
Capacitors Japanese
Life expectancy 100,000 hours
Cable type Modular 24-pin cable: Black UltraFlex™ wires in braided sleeve Other modular cables: Flat black UltraFlex™ wires
Input voltage 100-240V C
Input frequency 50-60 Hz
Input current 10A/5A
Protection features Over voltage protection, Under voltage protection, Overpower protection, Short circuit protection, Over current protection, Over temperature protection
PSU specification compliance ATX12V 2.52; EPS12V 2.92
Sleep state compliance C6/C7
Approvals & certifications CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, KC+KCC
Warranty 10 years
Connectors
ATX 24-pin 1
ATX12V 4+4 pin / EPS12V 8-pin 2
PCIe 6+2 pin 6
SATA 10
Peripheral 4
DC Output
3.3V 22A
5V 22A
3.3V and 5V combined 120W
12V 63.3A
-12V 0.3A
+5Vsb 3A
Total Power 760W
Cable Configuration (length in mm between connectors)
ATX 20+4 pin 600
ATX 12V 4+4 pin 700
EPS12V 8-pin 600
PCIe 6+2 pin 550+120
SATA 400+150+150+150 mm & 650+150mm
Peripheral 400+150+150+150 mm

Technické parametry

Efektivita zdroje 80 Plus Platinum
Modulární kabeláž Ano
Podsvícení Bez podsvícení
Výkon zdroje (W) 760
Formát zdroje ATX
Konektory PCIe 6-pin
Konektory pro základní desku ATX 20-pin
Vlastnosti zdroje Modulární kabeláž
