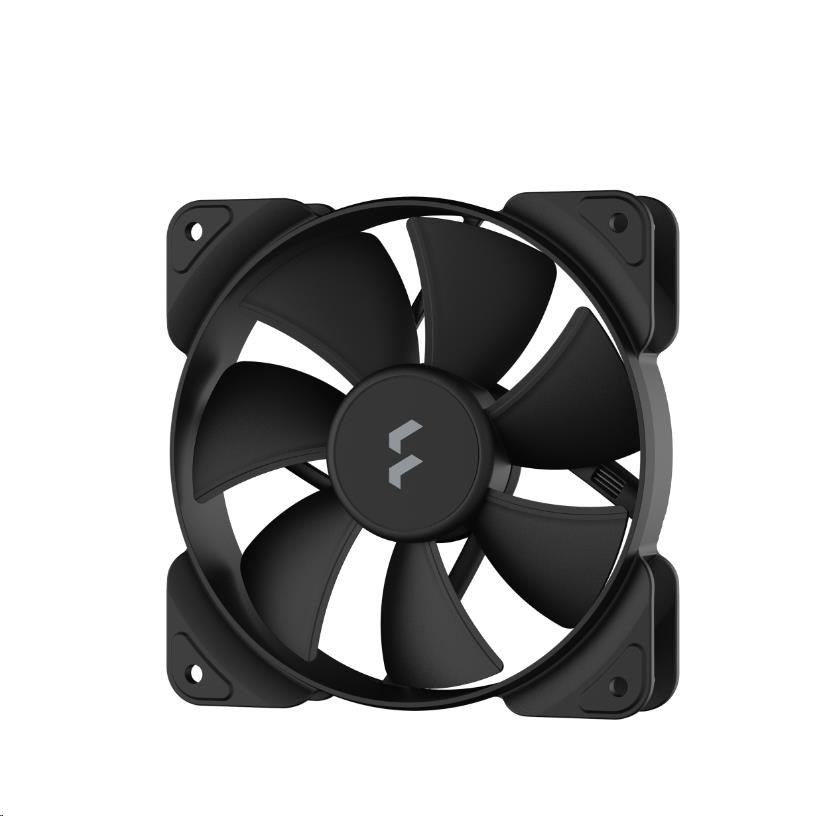

Aspect 12
Building on the core functionality of market favorites like Dynamic and Prisma, the Aspect series brings an exciting new aesthetic to the Fractal range of fans. Notable features include aerodynamic stator struts for lower turbulence, Trip Wire technology for enhanced blade efficiency, rifle bearings and built-in chaining support to simplify cable management.
- Less turbulence thanks to aerodynamic stator struts
- Trip Wire technology introduces a micro-turbulent layer for enhanced blade efficiency
- Supports chaining to simplify cable management
TECHNICAL SPECIFICATIONS
| Size |
120 x 120 x 25 mm |
| Screw hole pattern |
105 x 105 mm |
| Fan Connector |
3-pin |
| Bearing |
Rifle |
| Number of blades |
7 |
| Rotation speed |
1200 RPM |
| Noise level |
18.3 dB(A) |
| Max airflow (CFM) |
32 CFM |
| Max airflow (m3/h) |
54.4 m3/h |
| Max pressure |
1.20 mm H2O |
| Fan typical input power |
0.96 W |
| Fan max input current |
0.16 A |
| Fan input voltage |
12 V |
| Minimum startup voltage |
7 V |
| MTBF |
90.000 h |
| Unit weight |
135 g |
| Cable length |
500 mm |
| Cable type |
Black/white ribbon (allows chaining) |
