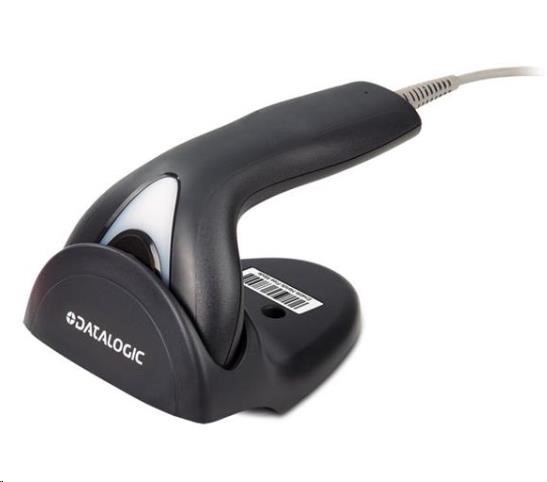

DataLogic Touch 90 Light, čtečka kódů, stojánek, black, USB

Lineární snímač obrazu. Vynikající hodnota pro ty, kdo hledají cenově výhodné řešení.

• Cenově výhodné kontaktní čtečky
• Možnost dvou šířek pro čtení specifických kódů
• Provoz se spouští a bez spoušti
• Profi modely mají více rozhraní

1D / lineární kódy
Třída krytí IP30
Tovární záruka 5 let
Prodejní místa (POS) Malý objem transakcí
POŠTA - Přepážky
ZDRAVOTNICTVÍ - Evidence pacientů

Decoding Capability
1D / Linear Codes Autodiscriminates all standard 1D codes including GS1
DataBar™ linear codes.
Stacked Codes GS1 DataBar Expanded Stacked; GS1 DataBar Stacked;
GS1 DataBar Stacked Omnidirectional
Electrical
Current Operating (Typical): < 100 mA @ 5 VDC
Standby/Idle (Typical): 20 mA @ 5 VDC
Input Voltage 5 VDC +/- 0.5 V
Environmental
Ambient Light 0 - 20,000 lux
Drop Resistance Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete
surface
ES D Protection (Air Discharge) 16 kV
Humidity (Non-Condensing) 5 - 95%
Particulate and Water Sealing IP30
Temperature Operating: 0 to 50 °C / 32 to 122 °F
Storage/Transport: -20 to 70 °C / -4 to 158 °F
Interfaces
Interfaces RS-232 / Keyboard Wedge: Touch 65/90 Lite
RS-232 / USB / Keyboard Wedge / Wand Emulation Multi-
Interface: Touch 65/90 Pro
USB: Touch 65/90 Lite
Physical Characteristics
Colors Available Black; Other colors and custom logo options are available for
minimum quantity purchase.
Dimensions 65 Pro & Lite: 16.0 x 8.4 x 5.8 cm / 6.3 x 3.3 x 2.3 in
90 Pro & LIte: 17.0 x 10.4 x 6.7 cm / 6.7 x 4.1 x 2.7 in
Weight 65 Pro & Lite: 130.0 g / 4.6 oz
90 Pro & LIte: 153.0 g / 5.4 oz
Reading Performance
Light Source Illumination: 640 nm LED
Print Contrast Ratio (Minimum) 25%
Read Angle Pitch: +/- 65o; Roll (Tilt): +/- 45o; Skew (Yaw): +/- 70o
Reading Indicators Beeper (Adjustable Tone); Good Read LED
Resolution (Maximum) 0.102 mm / 4 mil
Reading Ranges
Typical Depth of Field Minimum distance determined by symbol length and scan
angle.
Printing resolution, contrast, and ambient light dependent.
Code 39: 7.5 mils: 0 to 8.1 cm / 0 to 3.2 in
Code 39: 10 mils: 0 to 12.0 cm / 0 to 4.7 in
EAN13: 13 mils: 0 to 15.0 cm / 0 to 6.0 in
Safety & Regulatory
Agency Approvals The product meets necessary safety and regulatory approvals
for its intended use.
The Quick Reference Guide for this product can be referred to
for a complete list of certifications.
Environmental Compliance Complies to China RoHS; Complies to EU RoHS
Utilities
Datalogic Aladd in™ Datalogic Aladdin configuration program is available for
download at no charge.
OPOS / JavaPOS JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge.
Remote Host Download Lowers service costs and improves operations.
Warranty
Warranty 5-Year Factory Warranty
