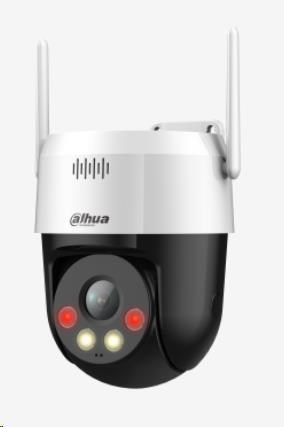

Dahua SD2A500HB-GN-AW-PV-0400-S2, 5 MPX, 1/2.8" CMOS, WiFi, PTZ kamera, MicroSD

Camera

Image Sensor

1/2.8" CMOS

Pixel

5 MP

Max. Resolution

2560 (H) × 1920 (V)

ROM

128 MB

RAM

128 MB

Electronic Shutter Speed

1/3 s–1/100,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6
0 lux (illuminator on)

Illumination Distance

30 m (98.42 ft) (IR) 30 m (98.42 ft) (white light)

Illuminator On/Off Control

Manual; auto; off

Illuminator Number

2 (IR light)
2 (White light)

Lens

Focal Length

4.0 mm

Max. Aperture

F1.6

Field of View

H: 80.4°
V: 58.1°
D: 104.8°

Close Focus Distance

0.3 m (0.98 ft)

Iris Control

Fixed

DORI Distance

Detect

Observe

Recognize

Identify

77.4 m (253.94 ft)

31.0 m (101.71 ft)

15.5 m (50.85 ft)

7.74 m (25.39 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 345°
Tilt: 0° to +80°

Manual Control Speed

Pan: 0.1°–74°/s
Tilt: 0.1°–36.4°/s

Preset Speed

Pan: 62°/s
Tilt: 36.3°/s

Preset

300.0

Power-off Memory

Yes

Idle Motion

Preset

Smart Event

IVS

Tripwire; intrusion

Human Detection

Yes

Active Deterrence

Light Warning

White light warning Flash duration: 5 s–30 s Flash frequency: high, medium, low

Sound Warning

Sound warning alarm: Customizable Alarm duration: 10 s, 20 s, 30 s

Video

Video Compression

H.264B;Smart H.265+;H.264;H.265;MJPEG(Sub Stream);Smart H.264+

Streaming Capability

2 streams

Resolution

5M (2560 × 1920); 4M (2560 × 1440); 1080P (1920 × 1080); 960P(1280x960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Main stream: 5M(1–20 fps),4M/1080p/1.3M/720p (1–25/30 fps)
Sub stream: D1/CIF (1–25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H264: 512–8192 kbps
H265: 233–7680 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

WDR

DWDR

HLC

Yes

White Balance

Auto; manual; tracking; indoor; outdoor; sodium lamp; street lamp; natural light

Gain Control

Auto; manual

Noise Reduction
