USB4 Gen3x2 Type-C, 6-in-1 Hub with HDMI 8K60Hz or 4K120Hz, 2xUSB Type-A(10G), Ethernet RJ45(2.5G) and 2xUSB Type-C, 1x Data(10G) and 1xPD3.0 charging 100 watt

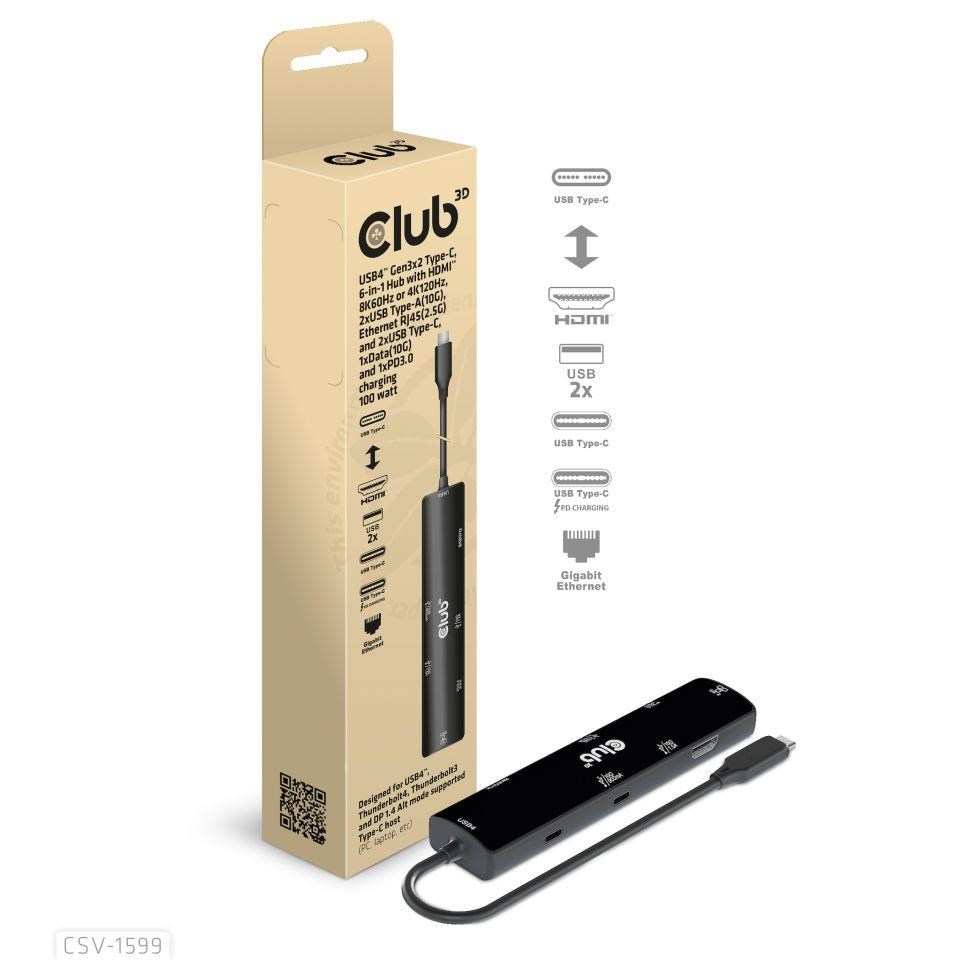

The Club 3D CSV-1599 is a USB4™ Gen3x2 Type-C, 6-in-1 Hub with HDMI™ 8K60Hz or 4K120Hz, 2xUSB Type-A(10G), Ethernet RJ45(2.5G) and 2xUSB Type-C, 1x Data(10G) and 1xPD3.0 charging 100 watt, this adapter is offering an integrated solution for video, data, power and Ethernet. It has a HDMI™(8K60Hz) for video transmission, 3 USB data ports (2 USB-A 10G, 1 Type-C 10G)for data transmission, a 2.5Gbps Ethernet port for surfing on line. Besides, this adapter is equipped with Type-C PD3.0 Charging port with max 100W power supply. It can work on USB4™, Thunderbolt4, Thunderbolt3 and DP Alt mode (15W is dedicated to the functioning of this product, the rest power(max 85W) will be passed to charge for the host. This 6-in-1 Hub will work on all DP Alt mode supported Type-C hosts.
- Designed for USB4™, Thunderbolt4, Thunderbolt3 and DP 1.4 Alt mode supported Type-C host (PC, laptop, etc).
- Downwards compatible - Specifications are limited to Source capability
- Support USB4™ Specification with max 40Gbps bandwidth
- Compliant USB4™ Gen3x2(40Gbps),USB4™ Gen2x2(20Gbps) and backwards compatible USB3.2&USB2.0
- Compliant DP1.4 alt mode with max 32.4Gbps
- HDMI™ supports max 8k60Hz or 4K120Hz video output and High Dynamic Range(HDR10+)
- USB Type-C data port and 2 USB Type-A support USB 3.2 Gen2 SuperSpeed 10Gbps
- One USB Type-A and USB Type-C data port support 5V/1.5A downstream charging
- Fast Ethernet RJ45 supports 10M/100M/1000M/2.5G bandwidth
- One USB Type-C PD Charging support PD3.0 with max 100W PD Charging,15W is dedicated to the functioning of this product, the rest power (85W) will be passed to charge for the host
TECHNICAL SPECIFICATIONS
| Available Interfaces |
Input:
• 1x USB4™ Type-C Male (Host connection)
Output:
• 1x HDMI™ Female:
- Support max 8k60Hz or 4K120Hz video output
- Support High Dynamic Range(HDR10+)
- Support multiple color formats: RGB; YCbCr4:4:4; YCbCr4:2:2;YCbCr4:2:0;
- Support 8/10/12 bit Color depth
- Support HDCP2.3 and HDCP1.4
Note: If the host supports DP1.4 Alt mode, the output can be up to 8K/60Hz; If the host only supports DP1.2 Alt mode, the output will only be supported up to 4K/60Hz. The output resolution, refresh rate, video pixel format depends on the performance of the computer and the monitor.
• 1x USB Type-C Female Data
- Max 10Gbps data transmission
- Support 7.5W(5V@1.5A) downstream charging
- Support short-circuit, over-current, over-voltage protection
• 1x USB Type-C Female (for PD 3.0 Charging)
- Support PD3.0 with max 100W PD Charging
- 15W is dedicated to the functioning of this product, the rest power (85W) will be passed to charge for the host
- Support fast role swap of PD3.0, the connected device will not get disconnected while plugging out PD Adapter;
• 2x USB Type-A Female
1- USB Type-A port Data 10G, support max 7.5W(5V@1.5A) downstream charging(closest to RJ45)
2- USB Type-A port Data 10G, support max 4.5W(5V@900mA) downstream charging
3- Support short-circuit, over-current, over-voltage protection
4- USB Type-C and 2 USB Type-A ports share max 2.4A(24W) downstream charging
• 1x RJ45 (Gigabit Ethernet)
- Support 10M/100M/1000M/2.5G bandwidth
- Supports twisted pair crossover detection and auto-correction
- Support WOL(Wake-On-LAN), Full Duplex flow(10M/100M/1G/2.5G Rate), Auto-Negotiation
- Light indicator indicates the state, no light when no Internet connected, orange light turns on when network connection is established, green light flashes when transmitting data. |
| OS Support |
• Works with Windows, Apple OS, Chrome OS |
| In the box |
• CSV-1599 USB4™ Gen3x2 Type-C, 6-in-1 Hub with HDMI™ 8K60Hz or 4K120Hz, 2xUSB Type-A(10G), Ethernet RJ45(2.5G) and 2xUSB Type-C, 1x Data(10G) and 1xPD3.0 charging 100 watt |
| Other info |
• Box size 6 x 24 x 3.5cm / 2.36 x 9.45 x 1.38 "
• Device size: 14.7 x 3.1 x 1.8 cm / 5.78 x 1.22 x 0.71"
• Total Length: approx. 40 cm / 15.75"
• Device Weight: 92 gr / 3.24 oz
• Inner Box Weight: 16 gr / 0.56 oz
• Box Weight: 28 gr / 0.99 oz
• Total Weight: 136 gr / 4.79 oz
• Meets ROHS, FCC, and CE EMI requirements |
In case of technical questions, you can contact the official support of the Club 3D manufacturer by email: support@club-3d.com. Support works mainly in English, but you can also write a question in Czech and the manufacturer will handle it. The manufacturer will respond within 24 hours. It is also possible to visit the discussion at the link: https://insights.club-3d.com/. Where you can also find useful information on using Club 3D products.
