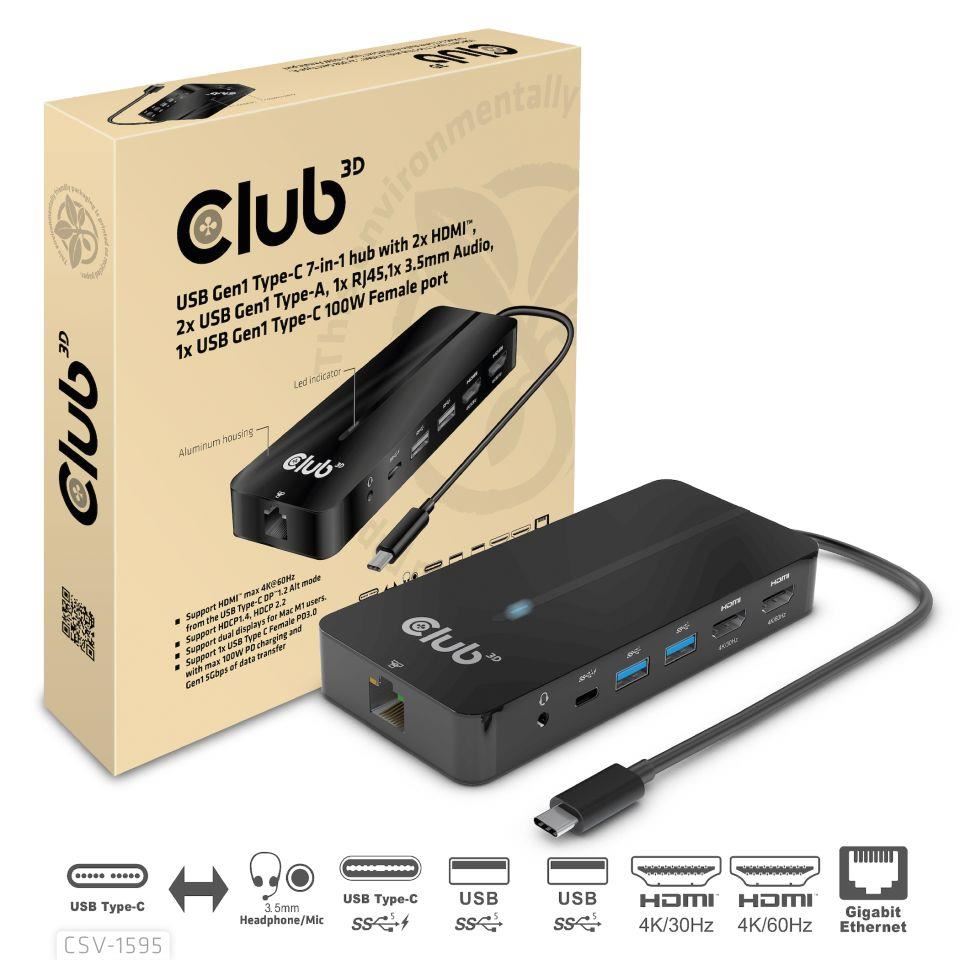

USB Gen1 Type-C 7-in-1 hub with 2x HDMI, 2x USB Gen1 Type-A, 1x RJ45, 1x 3.5mm Audio, 1x USB Gen1 Type-C 100W Female port
The Club 3D CSV-1595 USB Gen1 Type-C 7-in-1 hub with with 2x HDMI™, 2x USB Gen1 Type-A, 1x RJ45, 1x 3.5mm Audio, 1x USB Gen1 Type-C 100W Female port, provides a very advanced, efficient solution to extend a single USB Gen1 Type-C port to multiple ports. It integrates video, data and power ports that allows to connect 2 displays simultaneously for enjoying videos on a larger screen, connect multiple USB Gen1 devices for data transmission up to 5Gbps, connect a Gigabit Ethernet source for getting your PC connected to super high speed network, or connect to headset to enjoy fantastic music. It also provides PD charging for support up to max. 100W PD charging. This is for operating this device and charge the host simultaneously. It can work on all DP™1.4 Alt mode supported USB Gen1 Type-C hosts.
- Support DP™1.4 Alt mode
- Support HDMI™ max 4K@60Hz from the USB Type-C Display Alternate Mode function
- Support HDMI™ max 4K@30Hz from the integrated chipset in the dock - make sure to install the driver from our website at www.club-3d.com
- Support HDCP1.4, HDCP 2.2 ( on the HDMI with AltMode Function only)
- Support dual displays for Mac M1/M2 users.*
- Max 5Gbps data transmission per USB Gen1 Type-A port
- Support max 7.5W(5V/1.5A) downstream charging,
- 2 USB Gen1 Type-A BC 1.2
- Support Gigabit Ethernet 10M/100M/1000M, RJ45
- Support Audio output
- Support 1x USB Type C Female PD3.0 with max 100W PD charging and Gen1 5Gbps of data transfer
TECHNICAL SPECIFICATIONS
| Input |
• USB Gen1 Type-C Male (Connect to host)
Support DP™1.4 Alt mode
Note: To get max bandwidth, the host should support DP™1.4 Alt mode |
| Output |
Single and Dual displays
• 1x HDMI™
Support max 4K@30Hz
Support 8/10 bit color depth output
Support output pixel format RGB/YCbCr4:4:4/YCbCr4:2:2
• 1x HDMI™ Alt Mode
Support max 4K@60Hz
Support 8/10 bit color depth output
Support output pixel format RGB/YCbCr4:4:4/YCbCr4:2:2
Support HDCP 2.2
Note: The max resolution of the display determined by the computer and the monitor
• 2x USB Gen1 Type-A
Max 5Gbps data transmission per port
Support max 7.5W(5V/1.5A) downstream charging
Support short-circuit, over-current, over-voltage protection
• 1x RJ45
Support Gigabit Ethernet, 10M/100M/1000M
Light indicator indicates the state, no light when no Internet connected, orange light turns on when network connection is established, green light flashes when transmitting data
• 1x 3.5mm Audio jack
Support Mic in with digital audio max 48K/16bit sampling rate
• 1x USB Gen1 Type-C Female (for PD Charging)
Support max 100W PD charging
Support PD3.0 Fast Role Swap
Support Gen 1 - 5Gbps of data transfer |
| OS Support |
All |
| In the box |
• 1x USB Gen1 Type-C 7-in-1 hub with 2x HDMI™, 2x USB Gen1 Type-A, 1x RJ45, 1x 3.5mm Audio, 1x USB Gen1 Type-C 100W Female port
• 1x Quick Install Guide (QIG) |
| Other info |
• Box size: 21 x 21 x 3.5 cm / 8.27 x 8.27 x 1.38"
• Cable length: ± 25 cm / ± 9.84"
• Total length: ± 39 cm / 15.35"
• Hub dimensions: 14 x 6.5 x 1.9 cm / 5.51 x 2.56 x 0.75"
• Product Weight: 210 gr / 7.41 oz
• Box Weight: 70 gr / 2.47 oz
• LDPE Bag Weight: 6 gr / 0.21 oz
• Total Weight: 286 gr / 10.09 oz
• Meets ROHS, FCC, and CE EMI requirements |
In case of technical questions, you can contact the official support of the Club 3D manufacturer by email: support@club-3d.com. Support works mainly in English, but you can also write a question in Czech and the manufacturer will handle it. The manufacturer will respond within 24 hours. It is also possible to visit the discussion at the link: https://insights.club-3d.com/. Where you can also find useful information on using Club 3D products.
