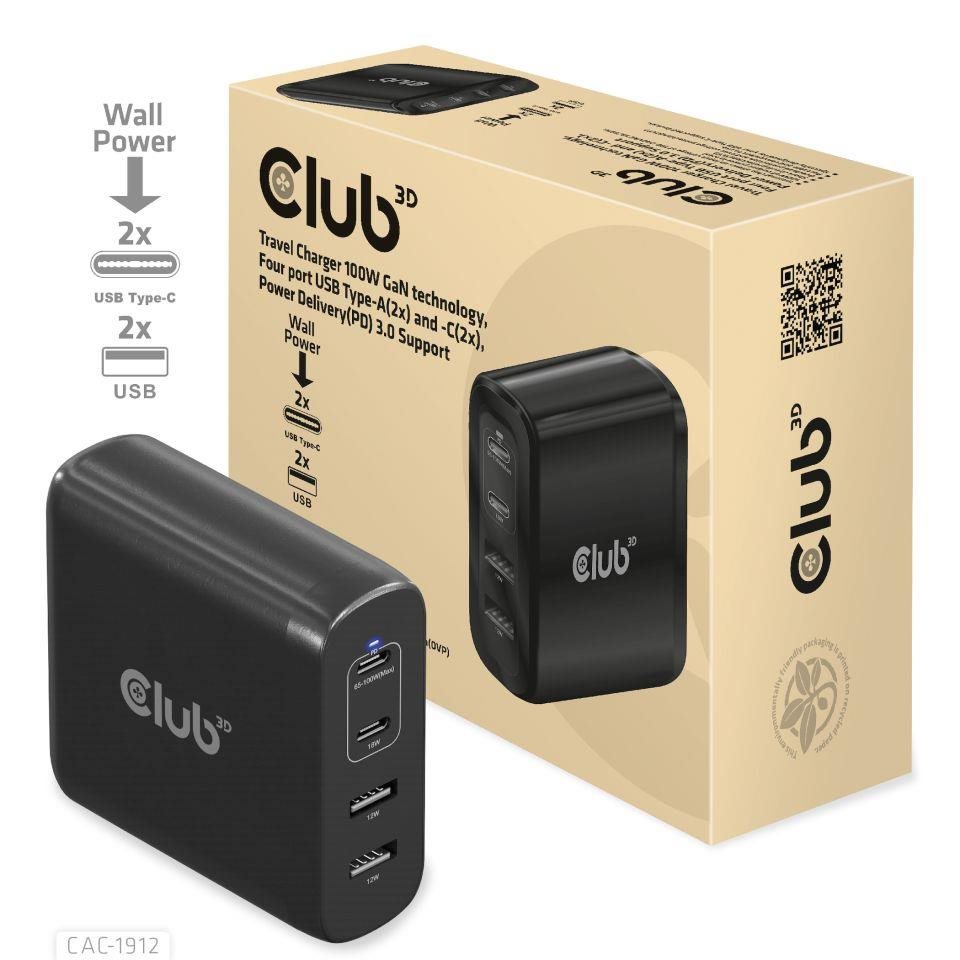

Travel Charger 100W GaN technology, Four port USB Type-A(2x) and -C(2x), Power Delivery(PD) 3.0 Support
The Club 3D CAC-1912 Travel Charger 100W GaN technology, Four port USB Type-A(2x) and -C(2x), Power Delivery(PD) 3.0 Support is a high-performance and fashionable design travel charger. It is equipped with four USB connectors that are for output interfaces, this product allows four devices to be charged at the same time. And the two USB Type-A ports can convey 2.4A each to total 3.4A. The USB Type-C port is specially designed for notebooks with a USB Type-C Host connection for a total 18W (5V/3A,9V/2A) output. The top USB Type-C port is specially designed for the USB Type-C notebooks with total 65W-100W (5~15V/3A,20V/3.25A,20V/5A) output. The maximum power output for single USB Type-C port is 100W. It is suitable to charge mobile phones, tablets and laptops. The unique design makes your life simpler and easier.
Charging: By adopting PD 3.0 Charging technology and charging function through USBType-C interface the Club3D Power Charger offers versatile and unique functionality. It will charge your devices up to 100 Watts. Built-in safeguards protect your devices against excessive current, overcharging and overheating(OCP-OTP-SCP-OVP).
- Internal chip allows an input voltage of 100-240VAC 50/60Hz
- GaN technology
- 100W of output power in total:
- Output of the two USB Type-A ports can convey 2.4A(12W) each to a combined total of 3.4A(17W)
- Output USB Type-C: 5~15V ? 3A(45W), 20V ? 3.25A(65W), 20V/5A output Max. 100W and the second USB Type-C port equipped with intelligent IC and automatically identifies the handheld devices attached with 5V ? 3A or 9V ? 2A(Max.18W)
- The maximum power output for single USB Type-C port is 100W
- Power Delivery(PD) 3.0Support
- Accurate limited current output and over current protection(OCP)
- Overload protection and over voltage protection(OVP)
- Short circuit protection(SCP)
- Over temperature protection and remove the fault conditon auto-recovery(OTP)
- Compliant with CE, FCC standards.
- Portable and convenient to use.
- Specially designed for your USB Type-C supported devices.
TECHNICAL SPECIFICATIONS
| OS Support |
All |
| In the box |
• CAC-1912 Travel Charger 100W GaN technology, Four port USB Type-A(2x) and -C(2x), Power Delivery(PD) 3.0 Support
- Mains connector (Specify on Order)
• 1x RED (Power ONLY) USB Type-C cable(1 m / 3.28 ft) for connecting to Host |
| Available Interfaces |
Input:
• 1x Mains connector (Specify on Order)
Output:
• USB Type-A Female(2x)
• USB Type-C Female(2x) |
| Other info |
• Box size: 11 x 13 x 5.5cm / 4.33 x 5.12 x 2.16"
• Device size: 8.05 x 8 x 2.95 cm / 3.17 x 3.15 x 1.16"
• USB (Power) Cable length approx.: 1 m / 3.28 ft
• Device Weight(Depending on mains connector): approx. 284 gr / 10.07 oz
• USB Cable Weight: 35 gr / 1.2 oz
• Box Weight: 40 gr / 1.41 oz
• LDPE Bag Weight: 9 gr / 0.3 oz
• Total Weight(depending on mains connector) approx.: 368 gr / 12.98 oz
• Meets ROHS, FCC, and CE EMI requirements |
