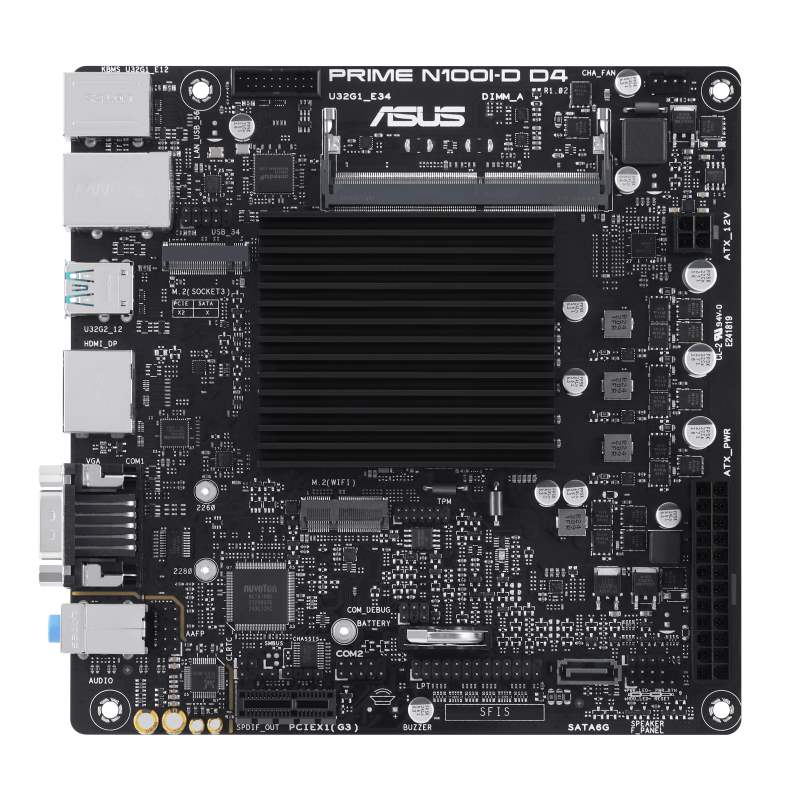

ASUS MB PRIME N100I-D D4-CSM, Intel® Processor N100, 1xDDR4, 1xHDMI, 1xDP, 1xVGA, Mini-ITX

CPU

Onboard Intel Processor N100
Supports Intel Turbo Boost Technology 2.0

Memory

1 x SO-DIMM, Max. 16GB, DDR4 3200/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
* We recommend that you use 16GB or less memory module.
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/

Graphics

1 x DisplayPort**
1 x VGA port
1 x HDMITM port***
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
**Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMITM 2.1.

Expansion Slots

1 x PCIe 3.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Total supports 1 x M.2 slot and 1 x SATA 6Gb/s port
1 x M.2 Socket 3 with M key, type 2260/2280 (supports PCIe 3.0 x 2 mode)
1 x SATA 6Gb/s port

Ethernet

1 x Realtek 1Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth

M.2 slot only (Key E, CNVi & PCIe)*
* Wi-Fi module is sold separately.

USB

Rear USB (Total 6 ports)
2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)*
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 4 ports)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports*
1 x USB 2.0 header supports 2 additional USB 2.0 ports
* U32G1_E1 port, U32G1_E2 port, U32G1_E3 port and U32G1_E4 port share the bandwidth.

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-Recording, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Premium audio capacitors
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMITM Port
1 x COM port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Fan and cooling related
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 4-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
1 x SATA 6Gb/s port
USB
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x Chassis Intrude header
1 x LPT header
1 x S/PDIF out header
1 x SPI TPM header (14-1pin)
1 x Speaker Header
1 x System Panel connector

Special Features

Proven Quality
- ESD Guards
- LANGuard
- Overvoltage Protection
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-LED Core
ASUS Thermal Solution
- CPU heatsink design

Software Features

ASUS Exclusive Software
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x Screw package for M.2 SSD
1 x Screw package for M.2 Key E
Documentation
1 x User guide
1 x ACC Express Activation Key Card

Operating System

Windows 11(Version 22'H2 and later), Windows 10 64-bit

Form Factor

Mini-ITX Form Factor 17cm x 17cm
