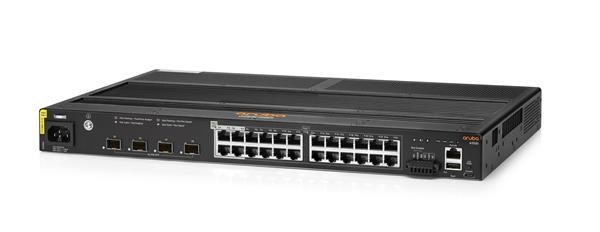

Aruba 4100i 24-port 1GbE (20-port Class 4 POE and 4-port Class 6 POE) 4-port SFP+ Switch (JL818A)
|
|
Description
|
4x ports 100M/1G BaseT Class 6 PoE ports supporting up to 60W per port
20x ports 100M/1G BaseT Class 4 PoE ports supporting up to 30W per port
|
|
4x 1/10G SFP ports
|
|
Supports PoE Standards IEEE 802.3af, 802.3at and 802.3bt (up to 60W)
|
|
1x USB-C Console Port
1x RJ Console
1x USB Type A Host port
1x Alarm socket
|
|
Power Supplies
|
Fixed internal power supply (300W)
|
|
240W of PoE Power (no de-rating)
|
|
Fans
|
Fanless
|
|
Physical Characteristics
|
Dimensions
|
(H) 44 mm x
(W) 444.5 mm x
(D) 304.4 mm
1.73" x 17.5" x 12.0"
|
|
Weight
|
6.50 kg (14.33 lbs)
|
|
Mounting And Enclosure
|
Cable management kit included. 2-post rack mounting kit included.
4-post rack mounting kit available separately
|
|
Additional Specifications
|
CPU
|
Dual Core ARM Cortex A9 @ 1016 Mhz
|
|
Memory And Flash
|
4 GB DDR3
32 GB eMMC
|
|
Packet Buffer
|
12.38MB (4.5MB Ingress/7.875MB Egress)
|
|
Performance
|
Model Switching Capacity
|
up to 128 Gbps
|
|
Model Throughput Capacity
|
up to 95 Mpps
|
|
Average Latency (LIFO-64-bytes packets)
|
1 Gbps: 1.585µSec , 10 Gbps: 1.243µSec
|
|
Switched Virtual Interfaces (dual stack)
|
16
|
|
IPv4 host table (ARP)
|
756
|
|
IPv6 host table (ND)
|
576
|
|
IPv4 unicast routes
|
576
|
|
IPv6 unicast routes
|
576
|
|
MAC Table Size
|
8192
|
|
IGMP Groups
|
512
|
|
MLD groups
|
512
|
|
IPv4/IPv6/MAC ACL entries (ingress)
|
256 / 128 / 256
|
|
Environment
|
Operating temperature
|
-40°C to 60°C, 0m/s (-40°F to 140°F, 0 LFM)
-40°C to 70°C, 0.2m/s (-40°F to 158°F, 40 LFM)
-34°C to 75°C, 1m/s (-29.2°F to 167°F, 200 LFM)
|
|
Non-Operating Storage relative humidity
|
5% to 95%, non-condensing
|
|
Max Operating Altitude
|
up to 4.2 km (13800 ft) Max
|
|
Max non-operating Altitude
|
4.6 km (15000 ft) Max
|
|
Electrical Characteristics
|
Frequency
|
50Hz/60Hz
|
|
AC voltage
|
100V-240V
|
|
DC Input Voltage
|
N/A
|
|
Current
|
max 3.9A/1.9A (240W PoE)
|
|
Maximum heat dissipation BTU/hr
|
117 BTU/hr at 230V - Room temperature
(25°C)
|
|
Power Consumption
(JL819A, JL820A- 230VAC)
(JL821A- 48VDC)
|
Idle: 23W
100% Traffic Rate: 34W
100% Traffic Rate (w/ heater): 62W
*Heater will only turn on at extreme low
temperature condition
|
|
Safety
|
Europe:
EN 60950-1:2006 + A11:2009 + A1:2010 +
A12:2011 + A2:2013
EN 62368-1, Ed.2:2014
North America:
UL 62368-1, 2nd Edition
CAN/CSA C22.2 No. 62368-1-14
Worldwide:
IEC 60950-1:2005 Ed.2 + Am 1:2009 + A2:2013
IEC 62368-1:2014
EN/IEC 60825-1:2014 Class 1
UL/IEC 61010-2-201
GB 4943.1:2011
CNS 14336-1
K 60950-1
|
|
EMC
|
Europe:
EN 55011:2010/CISPR 11, Class A
EN 55032:2015/CISPR 32, Class A
EN 55035:2017/CISPR 35
EN 61000-3-2:2014, Class A
EN 61000-3-3:2013
US:
FCC CFR 47 Part 15: 2018 Class A
Canada:
ICES-003 Class A
Japan:
VCCI Class A
Taiwan (BSMI)
CNS 13438 Class A
Korea
KN 35:2015
Korea
KN 32 Class A
Aus/NZ
AS/NZS CISPR 32 Class A
Worldwide:
VCCI Class A
CISPR 11 Class A
CISPR 22 Class A
CISPR 32 Class A
CISPR 24:2010
|
|
Lasers
|
EN 60825-1:2007 / IEC 60825-1:2007 Class 1
Class 1 Laser Products / Laser Klasse 1
(Applicable for accessories - Optical Transceivers only)
|
